Xwatt
Residential series

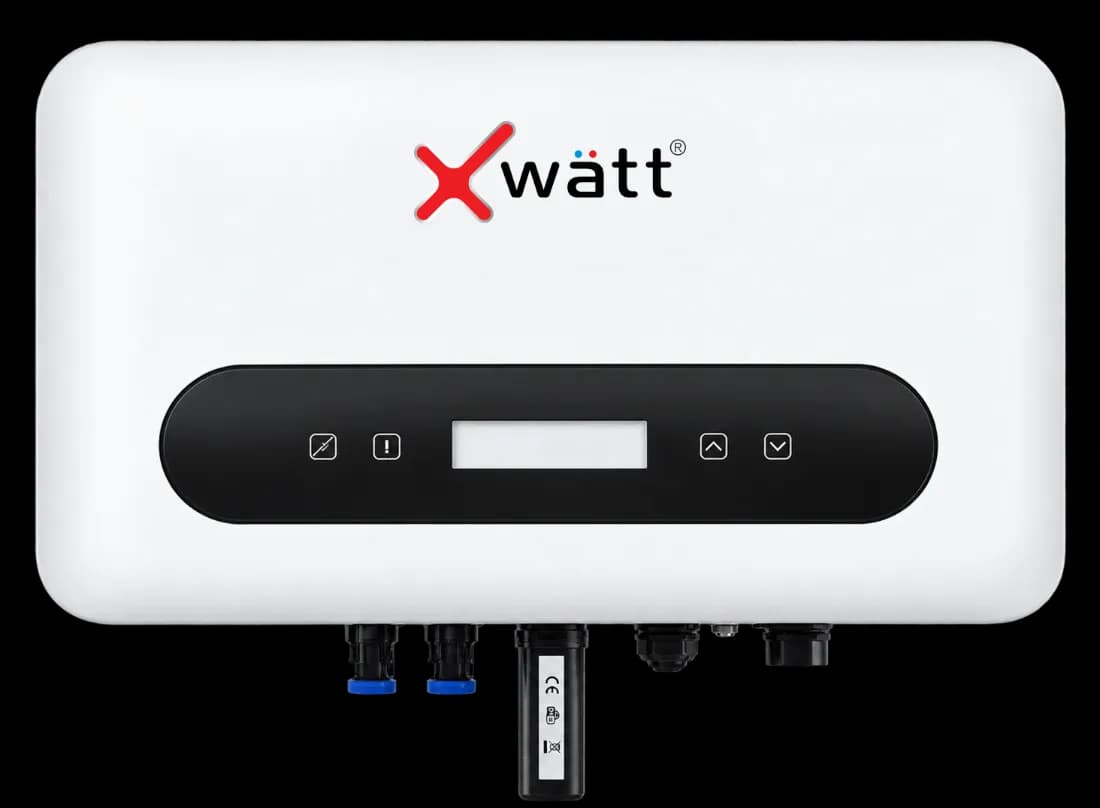

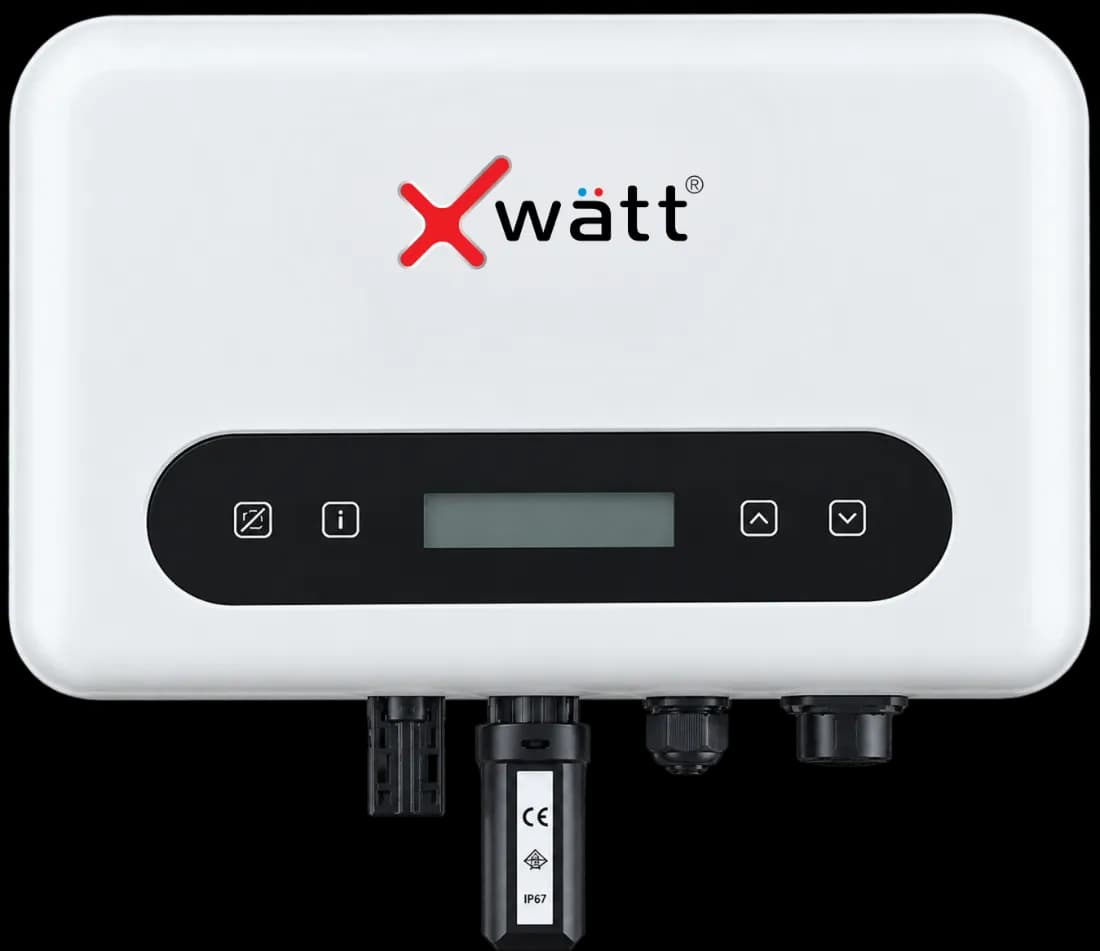

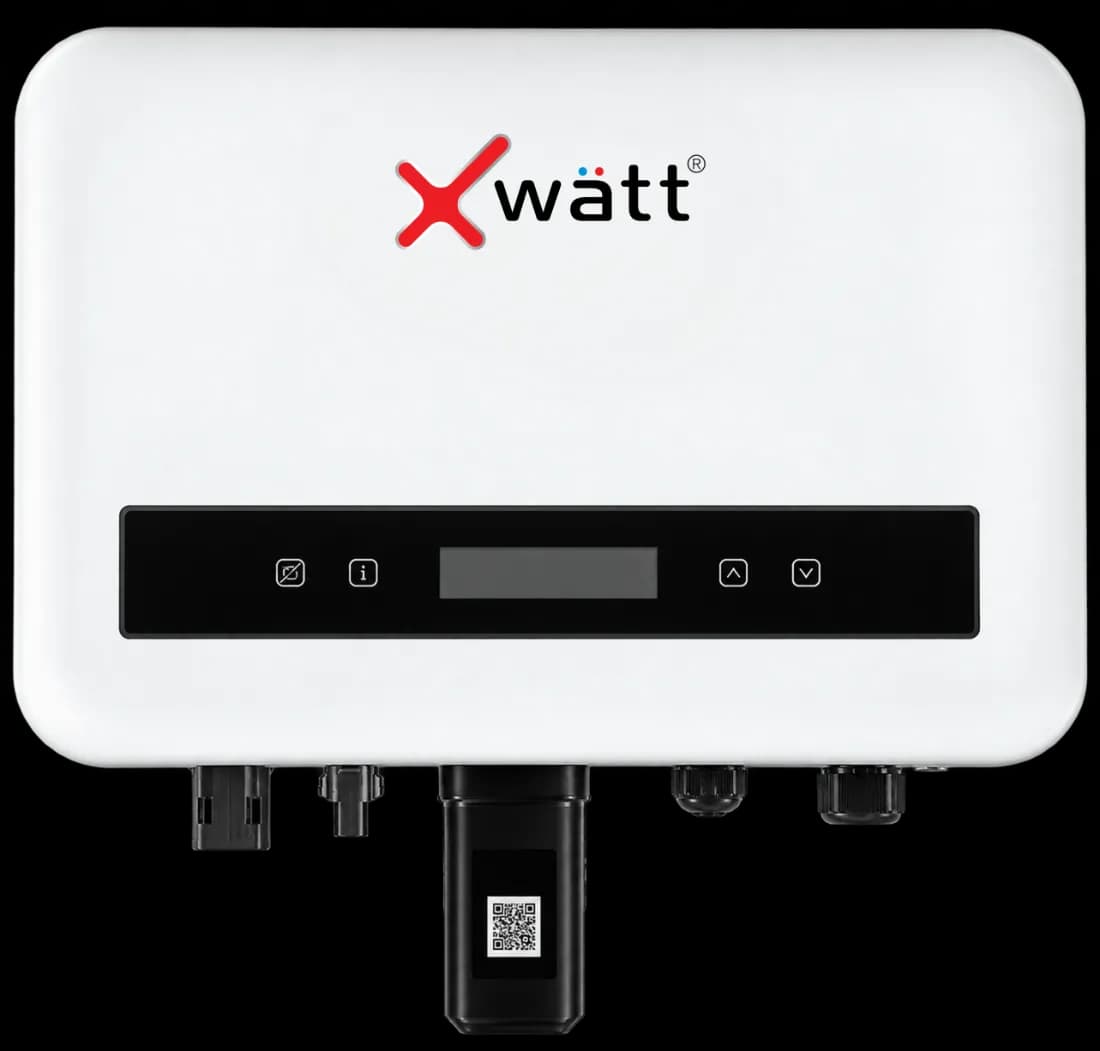

Single Phase Inverter

1.5 kW – 6.0 kW

On-grid solar inverters for homes and small businesses. High input current, wide AC voltage range and silent natural cooling, built for Indian rooftops.

Get a quoteDatasheet
Residential series10 year warranty
Max. efficiency
98%
Max. PV input current
20A
Start-up voltage
50V
AC voltage range
90–290V
Ingress protection
IP66

Key features

More energy from every panel, every day

Designed around high-power modules and unstable grids, so your system starts earlier, runs longer and keeps producing through voltage swings.

  • 800Wp

    High-power panels

    20 A input current supports modules up to 800 Wp.

  • 50V

    Low start-up voltage

    Starts generating earlier in the morning and runs later in the evening.

  • 90–290V

    Wide AC range

    Stays online through low and high grid voltage.

  • ≤25dB

    Silent & compact

    Fanless natural cooling in a compact die-cast body that is easy to install.

  • In built SPD on both side
  • Lower Start-up Voltage 50V
  • Fanless Natural Cooling System
  • Ingress Protection IP66
  • Remote Upgrade and Maintenance
  • Aluminium Die Cast Body
  • Anti Islanding Protection
  • Higher AC Range 90V – 290V
  • MPPT Efficiency Up To 99%
  • Supported Upto 800Wp Panel
  • High Performance
  • Easier Communication with WIFI / GPRS / Local Mode

Product variants

Three compact designs

1.5 kW – 4.4 kW290 × 206 × 120 mm

Technical specifications

Full datasheet

DC Input
DescriptionXW-1.5KXW-2.3KXW-3.0KXW-3.3KXW-3.6KXW-4.0KXW-4.4KXW-5.0KXW-5.4KXW-6.0K
Max. PV array input power [Wp]2250345045004950540060006600750081009000
Max. PV input voltage [V]550550550550550550550550550550
Startup voltage [V]50505050505050505050
Nominal input voltage [V]360360360360360360360360360360
MPP tracker voltage range [V]40–55040–55040–55040–55040–55040–55040–55040–55040–55040–550
No. of MPP trackers1
Strings per MPP tracker1
Max. PV input current [A]20
PV Array short circuit current [A]25
AC Output
DescriptionXW-1.5KXW-2.3KXW-3.0KXW-3.3KXW-3.6KXW-4.0KXW-4.4KXW-5.0KXW-5.4KXW-6.0K
Rated AC output power [W]1500230030003300360040004400500054006000
Rated AC output current [A]6.51013.114.415.717.419.221.723.526.1
Max. AC output current [A]7.5111515182022252727.3
Nominal AC voltage / AC voltage range [V]230 ; 90–290
Nominal AC frequency / AC frequency range [Hz]50 ; ± 5%
Power factor~ 0.99
THDi (rated power) [%]< 3
System Data
DescriptionXW-1.5KXW-2.3KXW-3.0KXW-3.3KXW-3.6KXW-4.0KXW-4.4KXW-5.0KXW-5.4KXW-6.0K
Max. efficiency [%]98
Euro efficiency [%]97
Standby power consumption [W] @ Night< 3
Ingress protectionIP66
Operating ambient temperature range [°C]−20 to 65
Max. operation altitude [m]4000
Relative humidity [%]0 to 100
Typical noise emission [dB]≤ 25
Dimensions (W × H × D) [mm]290 x 206 x 120300 x 235 x 145
Weight [kg]5.25.57.1
Cooling conceptNatural Cooling
Communication interfacesUSB / RS485
MonitoringWiFi / GPRS / Local Mode
Protection
DescriptionXW-1.5KXW-2.3KXW-3.0KXW-3.3KXW-3.6KXW-4.0KXW-4.4KXW-5.0KXW-5.4KXW-6.0K
Over / under voltage protectionYes
DC isolation protectionYes
Monitoring ground fault protectionYes
Grid monitoringYes
DC injection monitoringYes
Back feed current monitoringYes
Residual current detectionYes
Anti-islanding protectionYes
Over temperature protectionYes
Surge protectionDC Side Type II SPD / AC Side Type II SPD
Standard
DescriptionXW-1.5KXW-2.3KXW-3.0KXW-3.3KXW-3.6KXW-4.0KXW-4.4KXW-5.0KXW-5.4KXW-6.0K
CertificationsBIS: IS 16221 (Part-2):2015 (IEC 62109 Part-2:2011) · IS 16169:2019 (IEC 62116:2014) · IS 17980:2022 (IEC 62891:2020)
Warranty10 years*

Warranty

10 years

Product warranty

Every Xwatt single phase inverter is covered by a 10-year warranty, backed by 30+ service centres across India.

Check your warranty online anytime with your inverter’s serial number.

Check warranty

Certifications

Tested to Indian and international standards

  • IS 16221 (Part-2) : 2015

    BIS safety of power converters · IEC 62109 Part-2 : 2011

  • IS 16169 : 2019

    Anti-islanding test procedure · IEC 62116 : 2014

  • IS 17980 : 2022

    Overall efficiency of grid-connected inverters · IEC 62891 : 2020

After-sales service

4 Level ServiceSupport

From the first call to a replacement unit, every service request moves through four clear levels.

  1. To Register A Complaint :

    Wifi/4G Configuration
    +91 90816 55586+91 90816 55587
    Service No.
    +91 90816 55560+91 90816 55572+91 90816 55596+91 90816 55545
    Raise Ticket
    www.xwatt.in/service-request
    Email ID
    service@xwatt.in

  2. For issues that can be fixed remotely, we offer support via online monitoring, provided each inverter has internet access through the RMS Dongle.

  3. If the problem is hardware-related or cannot be solved remotely, our team will visit the site for assistance.

  4. For faulty inverters, replacements will be arranged within 48 business hours from the time the complaint is logged.

XMonitor app

Your solar plant, live on your phone

Track daily generation, get instant fault alerts and manage every Xwatt inverter remotely with the free XMonitor app.

Google PlayApp Store

XMONITOR

Login

Hello Welcome Back

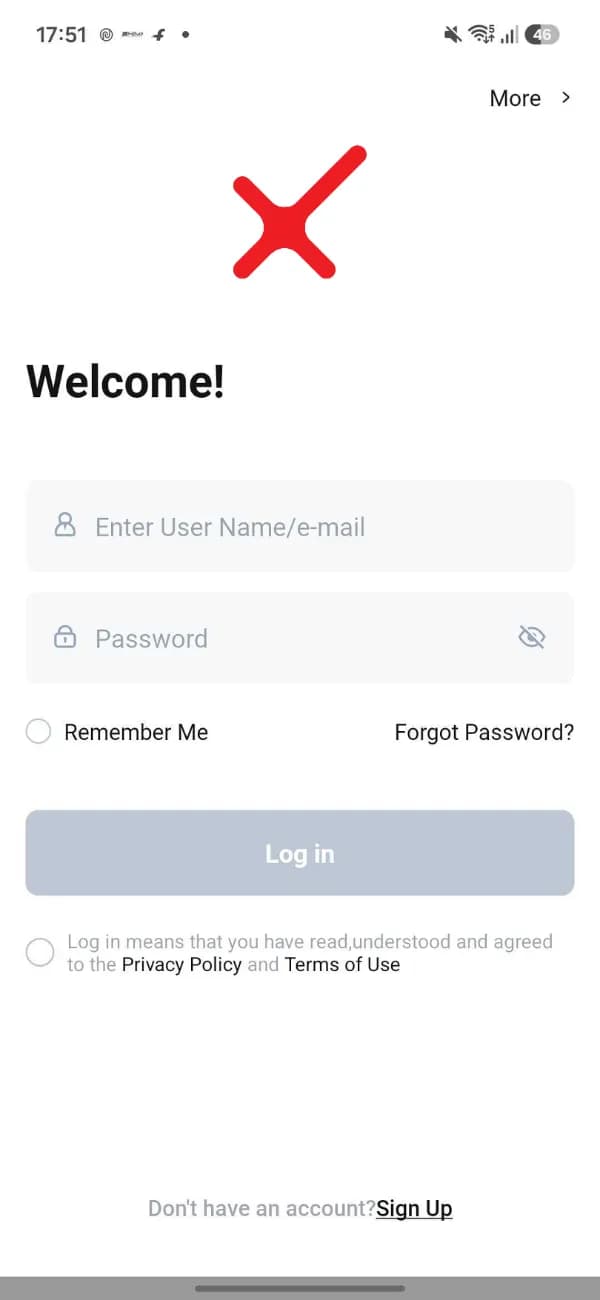

XMonitor app sign-in screen
Daily Unit GenerationSee today's units at a glance, with daily, monthly and lifetime history.

FAQ

Questions, answered

Can’t find what you need? Call our toll-free line 1800 120 1278.

Which system sizes does the single phase range cover?

Ten models from 1.5 kW to 6.0 kW rated AC output (XW-1.5K to XW-6.0K), suited to homes, shops and small offices.

What is the largest solar panel I can use?

With 20 A maximum PV input current, the inverter supports high-power modules up to 800 Wp.

Will it work if my grid voltage is low or unstable?

Yes. The AC operating range is 90–290 V, so the inverter keeps exporting through low and high voltage. A 50 V start-up voltage also lets it begin generating earlier in the day.

Can I monitor generation on my phone?

Yes. Use the XMonitor app to see daily generation and fault alerts. Monitoring works over Wi-Fi, GPRS or local mode, with USB / RS485 communication interfaces.

Is it suitable for outdoor installation?

The inverter is IP66 rated, uses fanless natural cooling and operates from −20 °C to 65 °C, so it can be installed outdoors in Indian conditions.

What warranty and certifications does it carry?

It comes with a 10-year warranty and is certified to BIS IS 16221, IS 16169 and IS 17980.
