Micro Inverter
1.0 kW – 2.25 kW
Panel-level micro inverters in 2-in-1 and 4-in-1 formats. Every module works independently, so shading on one panel never drags down the rest of the roof.
- Peak efficiency
- 97%
- MPPT efficiency
- 99.9%
- Start-up voltage
- 22V
- MPPTs (4-in-1)
- 4
- Ingress protection
- IP67
Key features
Panel-level power, simpler installs
Each panel gets its own MPPT, so output stays high on partly shaded roofs and every module can be monitored on its own.
1:1
Panel-level MPPT
Each module is tracked independently for maximum output.
0 DC box
Simpler setup
No separate DC combiner box needed on site.
800+ Wp
High-power modules
Supports 800+ Wp panels per input.
IP67
Built for the roof
Natural convection cooling from −25 °C to +65 °C.
In built SPD on both side
Lower Start-up Voltage 22V
Fanless Natural Cooling System
Ingress Protection IP67
Remote Upgrade and Maintenance
Aluminium Die Cast Body
Anti Islanding Protection
Panel Level Monitoring
MPPT Efficiency Up To 99.9%
Supported upto 800WP Panel
High Performance
Easier Communication with Wifi / Bluetooth
Technical specifications
Full datasheet
| Description | XW-1.0K | XW-1.1K | XW-2.0K | XW-2.3K |
|---|---|---|---|---|
| Recommended Module Power [Wp] | 800+ | |||
| No. Of PV Module | 1 to 2 | 1 to 2 | 1 to 4 | 1 to 4 |
| Start up Voltage per Input@ Rated Condition [V] | 22 | 22 | 22 | 22 |
| MPPT Voltage Range per Input [V] | 16 ~ 60 | 16 ~ 60 | 16 ~ 60 | 16 ~ 60 |
| Max. Input Voltage per Input [V] | 60 | 60 | 60 | 60 |
| Max. Input Current per Input [A] | 14 | 14 | 18 | 18 |
| Short circuit Current - [A] | 20 | 20 | 25 | 25 |
| No. of MPPT | 2 | 2 | 4 | 4 |
| No. of DC Inputs | 2 | 2 | 4 | 4 |
| Description | XW-1.0K | XW-1.1K | XW-2.0K | XW-2.3K |
|---|---|---|---|---|
| Nominal Continuous Output Power [W] | 1000 | 1100 | 2000 | 2250 |
| Max Output Current [A] | 5 | 5.5 | 10 | 11.25 |
| Nominal Output Voltage [V] | 230 | |||
| Nominal Frequency [Hz] | 50 | |||
| Power Factor | ~ 0.99 | |||
| Output Current Harmonic Distortion [%] | < 3 | |||
| Description | XW-1.0K | XW-1.1K | XW-2.0K | XW-2.3K |
|---|---|---|---|---|
| Peak Inverter Efficiency [%] | 96.7 | 96.7 | 96.7 | 97.0 |
| Nominal MPPT Efficiency [%] | 99.9 | |||
| Night Time Power Consumption [mW] | < 50 | |||
| Description | XW-1.0K | XW-1.1K | XW-2.0K | XW-2.3K |
|---|---|---|---|---|
| Dimensions [W x H x D] mm | 261 * 228 * 32 | 331 * 261 * 44 | ||
| Weight [kg] | 2.8 | 5 | ||
| Description | XW-1.0K | XW-1.1K | XW-2.0K | XW-2.3K |
|---|---|---|---|---|
| Communication | WiFi (Bluetooth) or RS485 | |||
| Type of Isolation | HF Isolation | |||
| Ingress Protection | IP67 | |||
| Cooling Concept | Natural convection | |||
| Operating Ambient Temperature Range [°C] | −25 ~ +65 | |||
| Relative Humidity [%] | 100 | |||
| Max. Operating Altitude Without Derating [m] | 2000 | |||
| Warranty | 10 Years | |||
Downloads
Product documents
Datasheet
Full technical specifications for XW-1.0K, 1.1K, 2.0K and 2.3K.
Warranty
10 years
Product warranty
Every Xwatt micro inverter is covered by a 10-year warranty, backed by 30+ service centres across India.
Check your warranty online anytime with your serial number.
Certifications
Tested to Indian and international standards
IP67 enclosure
Sealed against dust and water for rooftop installation
HF isolation
High-frequency galvanic isolation between PV and grid
Anti-islanding
Disconnects automatically when the grid fails
Installation gallery

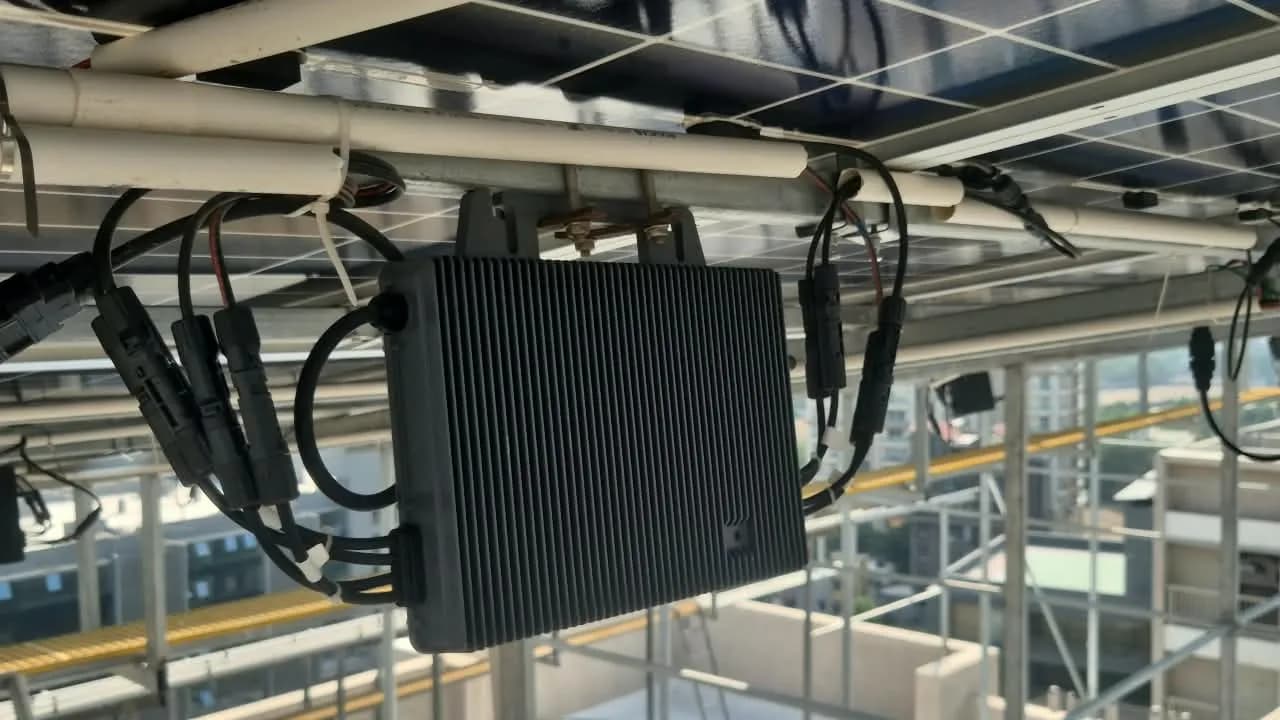

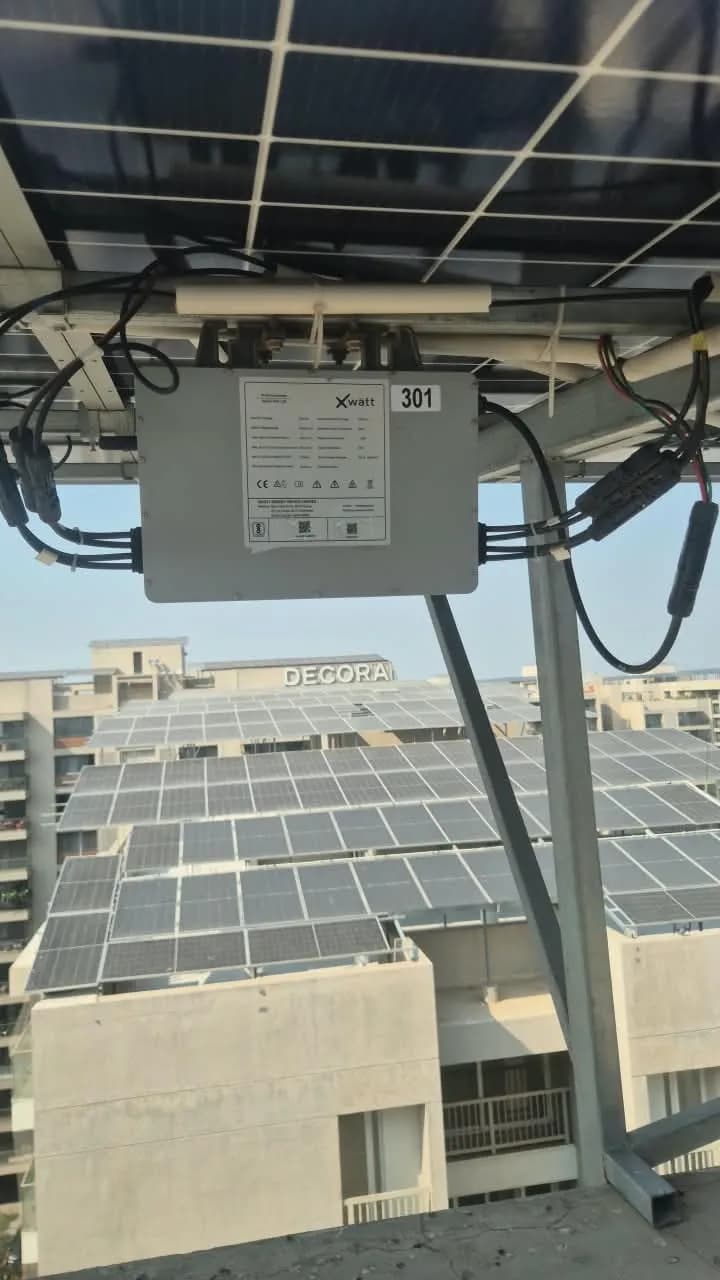

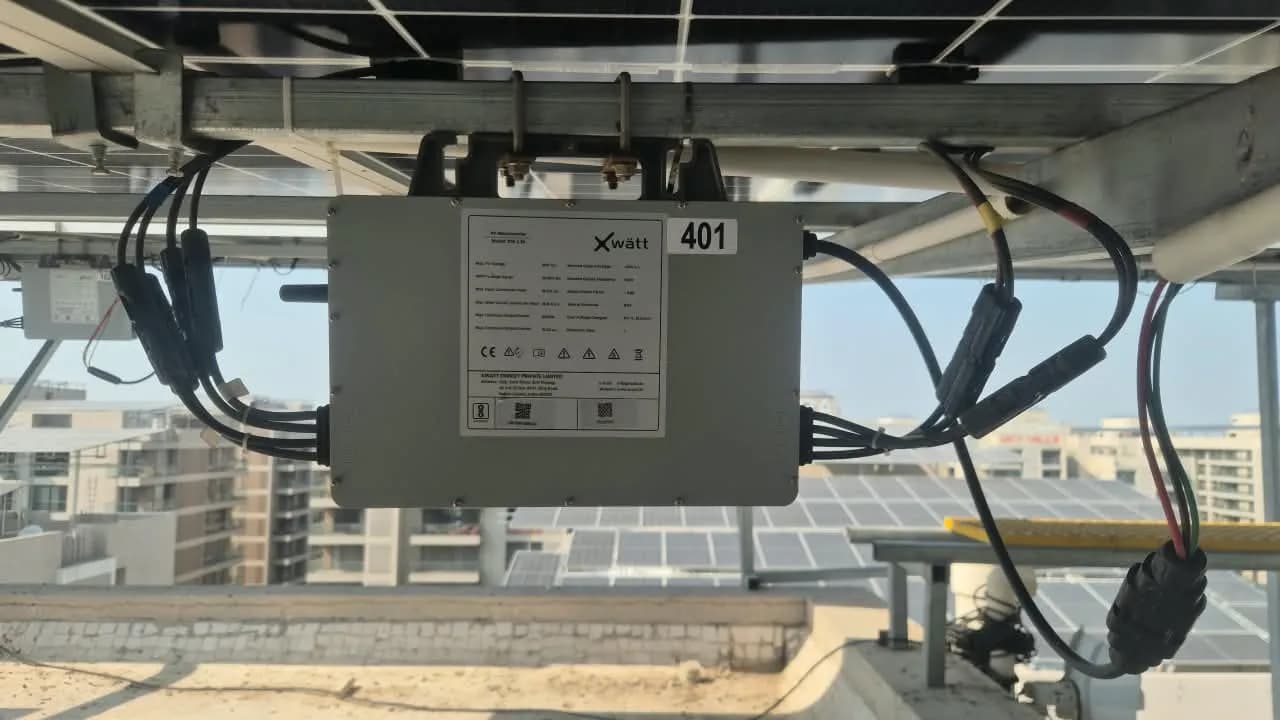

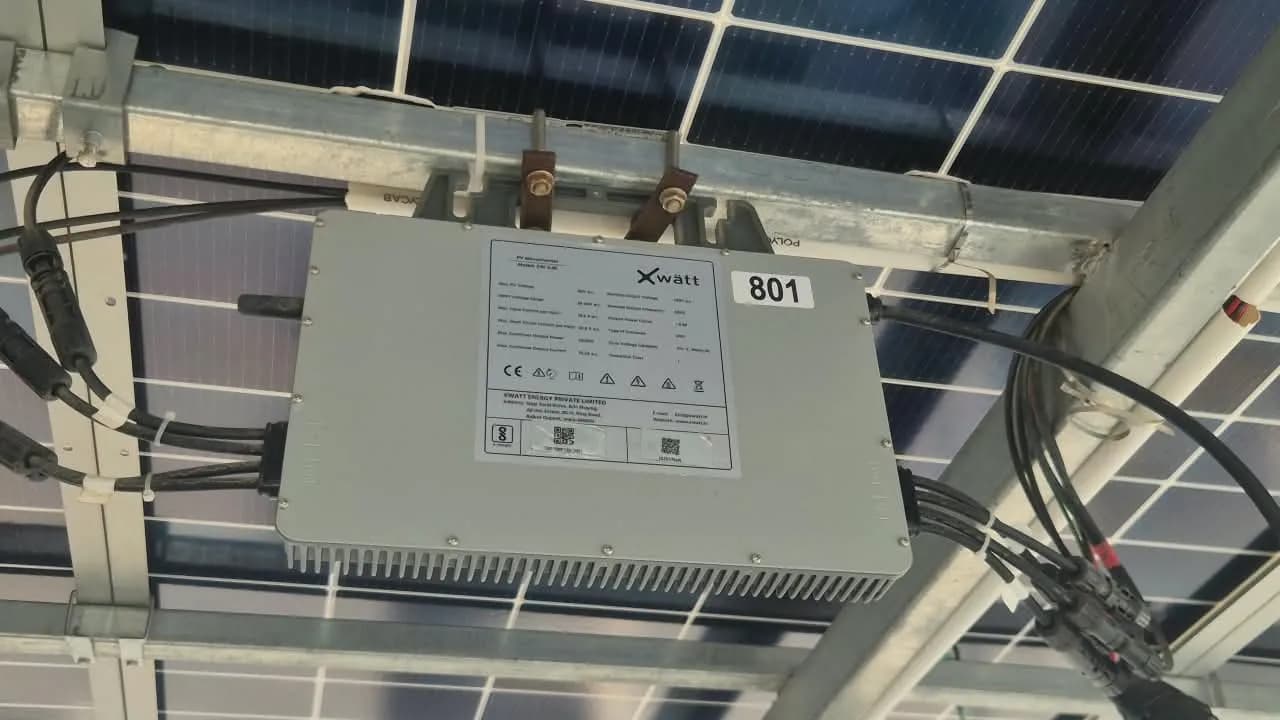

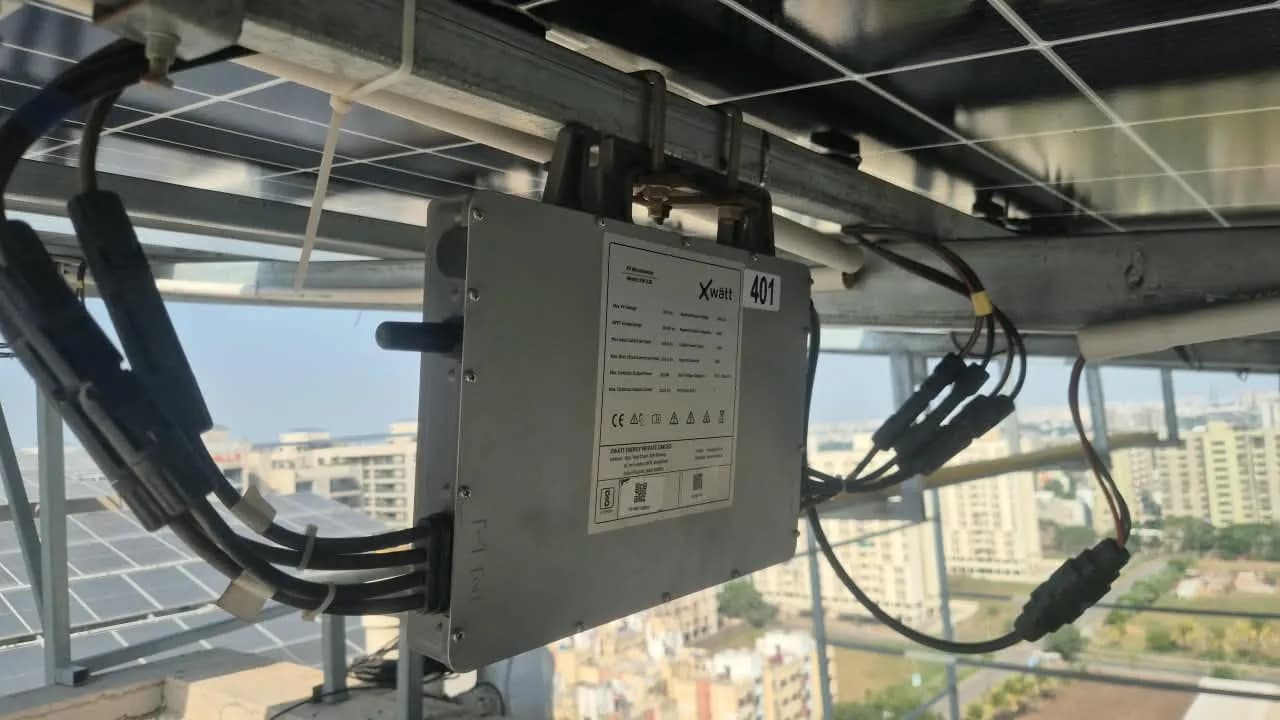

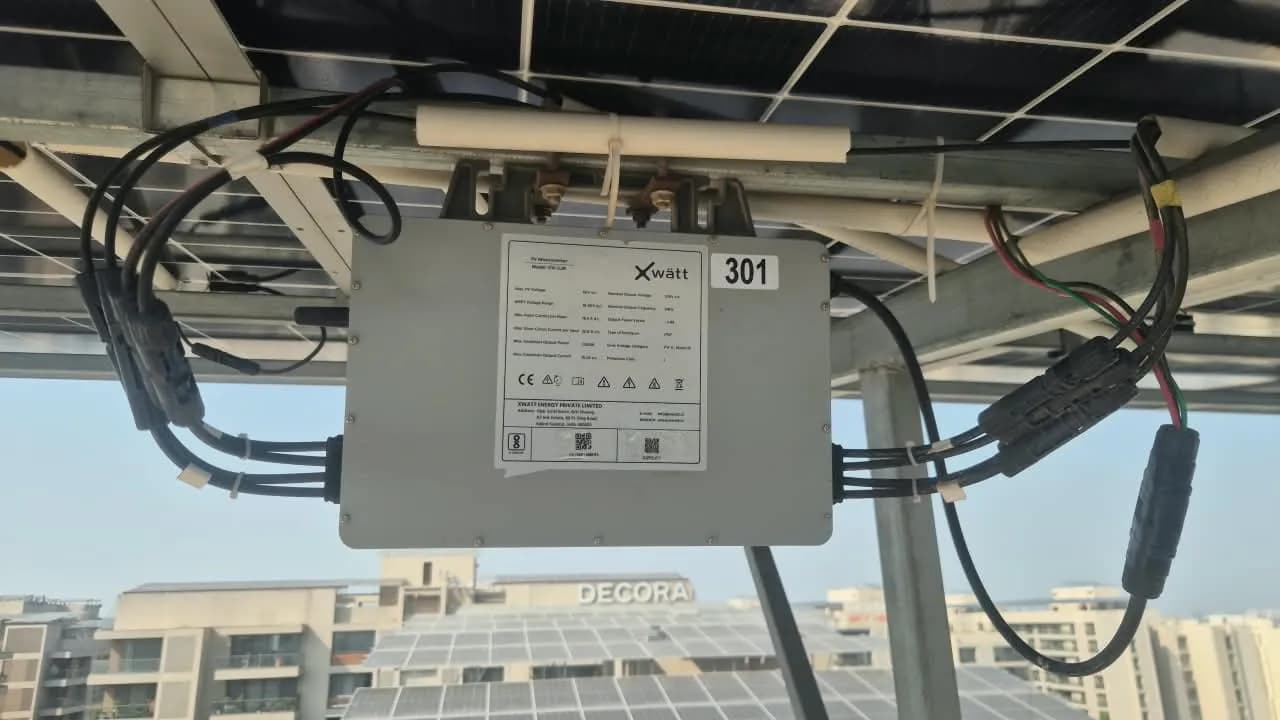

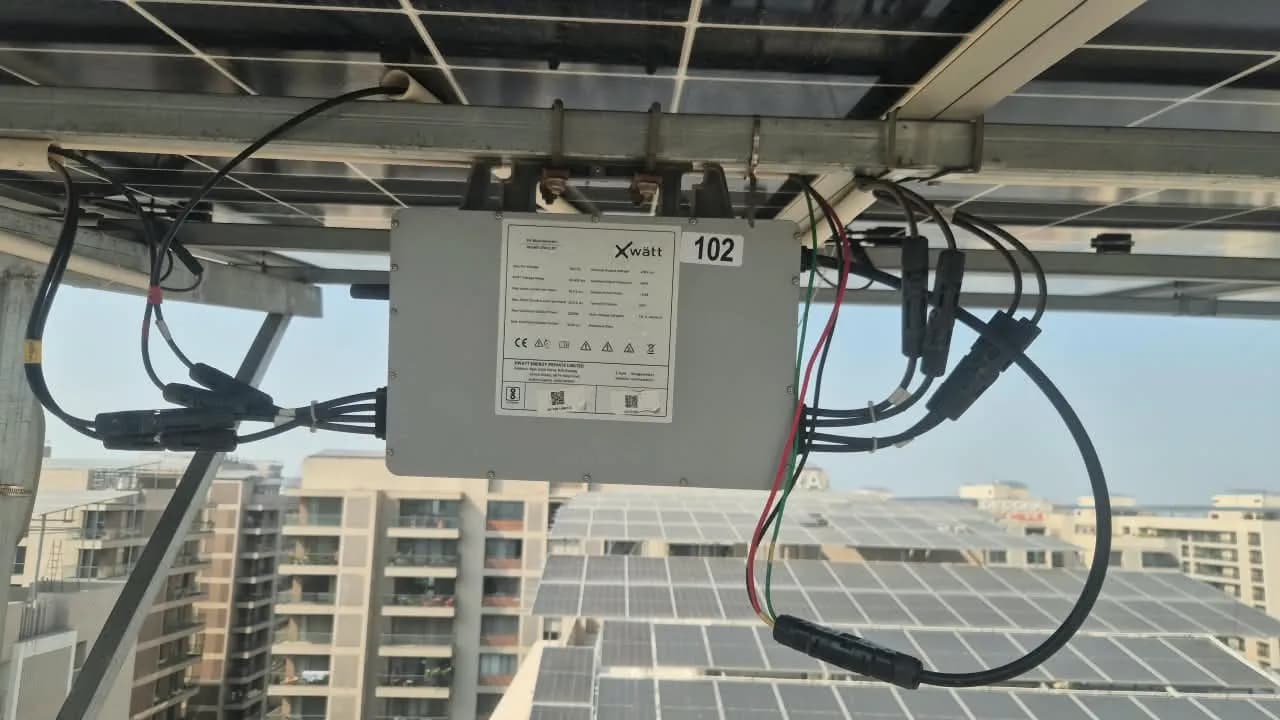

Micro inverter installations across India
After-sales service
4 Level ServiceSupport
From the first call to a replacement unit, every service request moves through four clear levels.
To Register A Complaint :
- Wifi/4G Configuration
- +91 90816 55586+91 90816 55587
- Raise Ticket
- www.xwatt.in/service-request
- Email ID
- service@xwatt.in
For issues that can be fixed remotely, we offer support via online monitoring, provided each inverter has internet access through the RMS Dongle.
If the problem is hardware-related or cannot be solved remotely, our team will visit the site for assistance.
For faulty inverters, replacements will be arranged within 48 business hours from the time the complaint is logged.
Register a complaint
To Register A Complaint :
- Wifi/4G Configuration
- +91 90816 55586+91 90816 55587
- Raise Ticket
- www.xwatt.in/service-request
- Email ID
- service@xwatt.in
Smart Life app
Your solar plant, live on your phone
Monitor every panel and manage your Xwatt micro inverter remotely with the free Smart Life app.

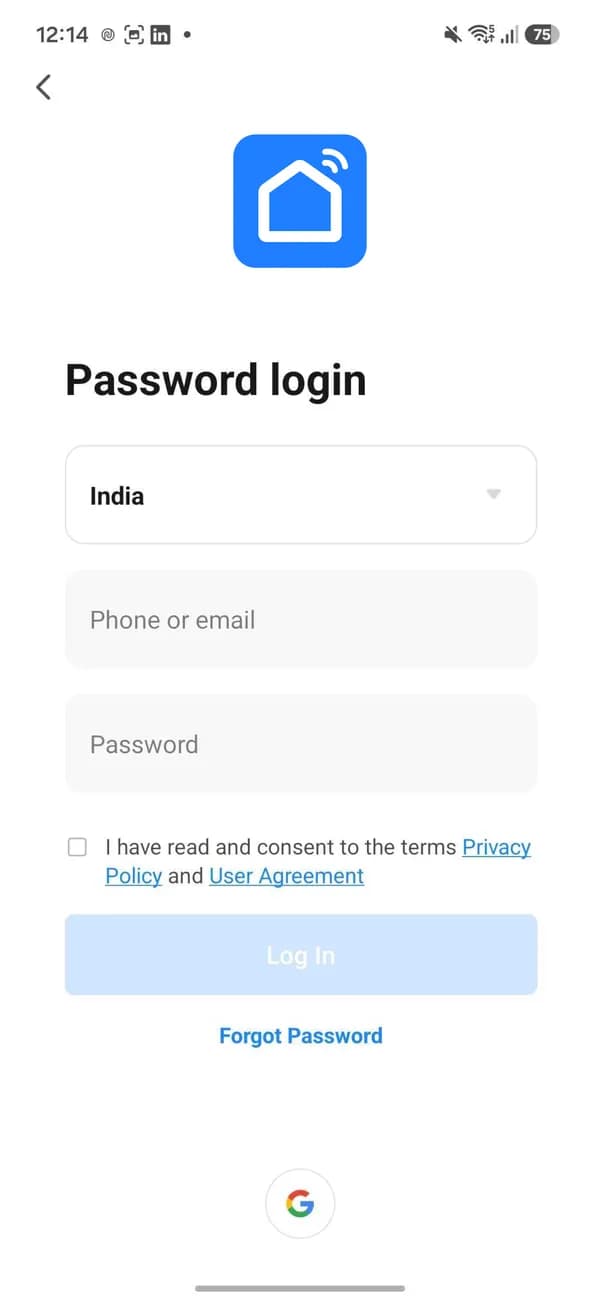

SMART LIFE
Login
Hello Welcome Back
- Daily Unit GenerationToday's, monthly and lifetime kWh at a glance
- Automatic Fault DetectionInstant alerts the moment an inverter reports a fault
- Panel Efficiency MonitoringSpot underperforming panels before output drops
- Remote Inverter ManagementCheck status and adjust settings from anywhere
FAQ
Questions, answered
Can’t find what you need? Call our toll-free line 1800 120 1278.
What is the difference between 2-in-1 and 4-in-1?
The 2-in-1 models (XW-1.0K, XW-1.1K) connect up to 2 panels with 2 MPPTs. The 4-in-1 models (XW-2.0K, XW-2.3K) connect up to 4 panels with 4 MPPTs.
Why choose a micro inverter over a string inverter?
Each panel is optimised on its own, so shading or a dirty module only affects that panel. You also get panel-level monitoring, no separate DC box and a lower initial cost than a string inverter.
Which panels are compatible?
Modules of 800+ Wp are recommended, with up to 18 A input current per input on the 4-in-1 models.
Can it be installed outdoors?
Yes. It is IP67 rated with natural convection cooling and operates from −25 °C to +65 °C.
How do I monitor my system?
Through Wi-Fi (Bluetooth) or RS485, with generation visible for every panel.
What warranty is included?
Every micro inverter carries a 10-year warranty.
