Hybrid Inverter
3.0 kW – 6.0 kW
Single phase low-voltage hybrid inverters that run solar, battery and grid together. Keep the lights on during outages with under 4 ms switchover.
- Max. efficiency
- 97.6%
- Switchover time
- <4ms
- MPP trackers
- 2
- Charge / discharge
- Up to 120A
- Ingress protection
- IP65
Key features
Solar, battery and grid in one box
Store daytime solar for the evening, back up essential loads during outages and work with lithium or lead-acid batteries.
<4ms
Seamless backup
EPS output switches over in under 4 ms when the grid fails.
2×
Lithium or lead acid
Works with both battery types across a 40–60 V range.
12kVA
Peak EPS power
Up to 12,000 VA for 10 s to start heavy loads.
97.6%
High efficiency
Max. efficiency 97.6% (Euro 97%) with two MPP trackers from 80–520 V.
In built SPD on both side
Lower Start-up Voltage 110V
Fanless Natural Cooling System
Ingress Protection IP65
Remote Upgrade and Maintenance
Anti Islanding Protection
Higher AC Range Upto 290V
Easier Communication with WIFI / GPRS / Local Mode
MPPT Efficiency Up To 99%
Supported Upto 800Wp Panel
High Performance
Technical specifications
Full datasheet
| Description | XWH-3.0K-LV | XWH-3.7K-LV | XWH-4.0K-LV | XWH-5.0K-LV | XWH-6.0K-LV |
|---|---|---|---|---|---|
| Max. PV array input power [Wp] | 4500 | 5550 | 6000 | 7500 | 9000 |
| Max. PV input voltage [V] | 550 | ||||
| Startup voltage [V] | 110 | ||||
| Nominal input voltage [V] | 360 | ||||
| MPP tracker voltage range [V] | 80–520 | ||||
| No. of MPP trackers | 2 | ||||
| String per MPP tracker | 1/1 | ||||
| Max. PV input current [A] | 16/16 | ||||
| PV array short circuit current [A] | 20/20 | ||||
| Description | XWH-3.0K-LV | XWH-3.7K-LV | XWH-4.0K-LV | XWH-5.0K-LV | XWH-6.0K-LV |
|---|---|---|---|---|---|
| Rated AC output power [W] | 3000 | 3680 | 4000 | 5000 | 6000 |
| Max. AC output apparent power [VA] | 3300 | 3680 | 4400 | 5000 | 6000 |
| Max. AC output continuous current [A] | 14.4 | 16 | 19.2 | 21.8 | 26.1 |
| Nominal AC voltage [Vac] | 220 / 230 / 240 | ||||
| Max. AC input apparent power [VA] | 6000 | 7360 | 8000 | 9200 | 9200 |
| Max. AC input current [A] | 26.1 | 32 | 34.8 | 40 | 40 |
| Nominal AC frequency [Hz] | 50 | ||||
| Power Factor | ~ 0.99 | ||||
| THDi (rated power) [%] | < 3 | ||||
| Description | XWH-3.0K-LV | XWH-3.7K-LV | XWH-4.0K-LV | XWH-5.0K-LV | XWH-6.0K-LV |
|---|---|---|---|---|---|
| Battery type | Lithium / Lead Acid | ||||
| Battery voltage range [V] | 40–60 | ||||
| Max. charge / discharge current [A] | 75 / 75 | 120 / 120 | |||
| Description | XWH-3.0K-LV | XWH-3.7K-LV | XWH-4.0K-LV | XWH-5.0K-LV | XWH-6.0K-LV |
|---|---|---|---|---|---|
| Rated EPS output voltage [V] | 230 | ||||
| Rated EPS output frequency [Hz] | 50 | ||||
| Peak EPS output power [VA] | 6000, 10 s | 7360, 10 s | 8000, 10 s | 10000, 10 s | 12000, 10 s |
| Switchover time [ms] | < 4 | ||||
| Description | XWH-3.0K-LV | XWH-3.7K-LV | XWH-4.0K-LV | XWH-5.0K-LV | XWH-6.0K-LV |
|---|---|---|---|---|---|
| Max. efficiency [%] | 97.6 | ||||
| Euro efficiency [%] | 97 | ||||
| Ingress protection | IP65 | ||||
| Operating ambient temperature range [°C] | −25 to 60 | ||||
| Max. operation altitude [m] | 3000 | ||||
| Relative humidity [%] | 4 – 100 | ||||
| Dimensions (W × H × D) [mm] | 397 × 490 × 201 | ||||
| Weight [kg] | 16.5 | 17.3 | |||
| Cooling concept | Natural Cooling | Smart Fan Cooling | |||
| Communication interfaces | USB / RS485 | ||||
| Monitoring | WiFi / GPRS / Local mode | ||||
| Description | XWH-3.0K-LV | XWH-3.7K-LV | XWH-4.0K-LV | XWH-5.0K-LV | XWH-6.0K-LV |
|---|---|---|---|---|---|
| Over / under voltage protection | Yes | ||||
| DC reverse polarity protection | Yes | ||||
| Back feed current monitoring | Yes | ||||
| Residual current detection | Yes | ||||
| Anti-islanding protection | Yes | ||||
| Over temperature protection | Yes | ||||
| Integrated DC Switch | Yes | ||||
| Surge Protection | DC Side Type II SPD / AC Side Type II SPD | ||||
| Description | XWH-3.0K-LV | XWH-3.7K-LV | XWH-4.0K-LV | XWH-5.0K-LV | XWH-6.0K-LV |
|---|---|---|---|---|---|
| Certifications | BIS: IS 16221 (Part-2):2015 (IEC 62109 Part-2:2011) · IS 16169:2019 (IEC 62116:2014) · IS 17980:2022 (IEC 62891:2020) | ||||
| Warranty | 5 Years* | ||||
*Warranty is subject to Xwatt warranty terms and conditions. Hybrid systems used with an Xwatt Lithium Battery may be eligible for a multi-year warranty extension.
Downloads
Product documents
Datasheet
Full technical specifications for XWH-3.0K-LV to XWH-6.0K-LV.
User Manual
Operation, monitoring setup, safety and troubleshooting.
BIS Certificate
Bureau of Indian Standards certification for this product range.
Warranty
5 years
Product warranty
Every Xwatt hybrid inverter is covered by a 5-year warranty, backed by 30+ service centres across India.
Check your warranty online anytime with your serial number.
Certifications
Tested to Indian and international standards
IS 16221 (Part-2) : 2015
BIS safety of power converters · IEC 62109 Part-2 : 2011
IS 16169 : 2019
Anti-islanding test procedure · IEC 62116 : 2014
IS 17980 : 2022
Overall efficiency of grid-connected inverters · IEC 62891 : 2020

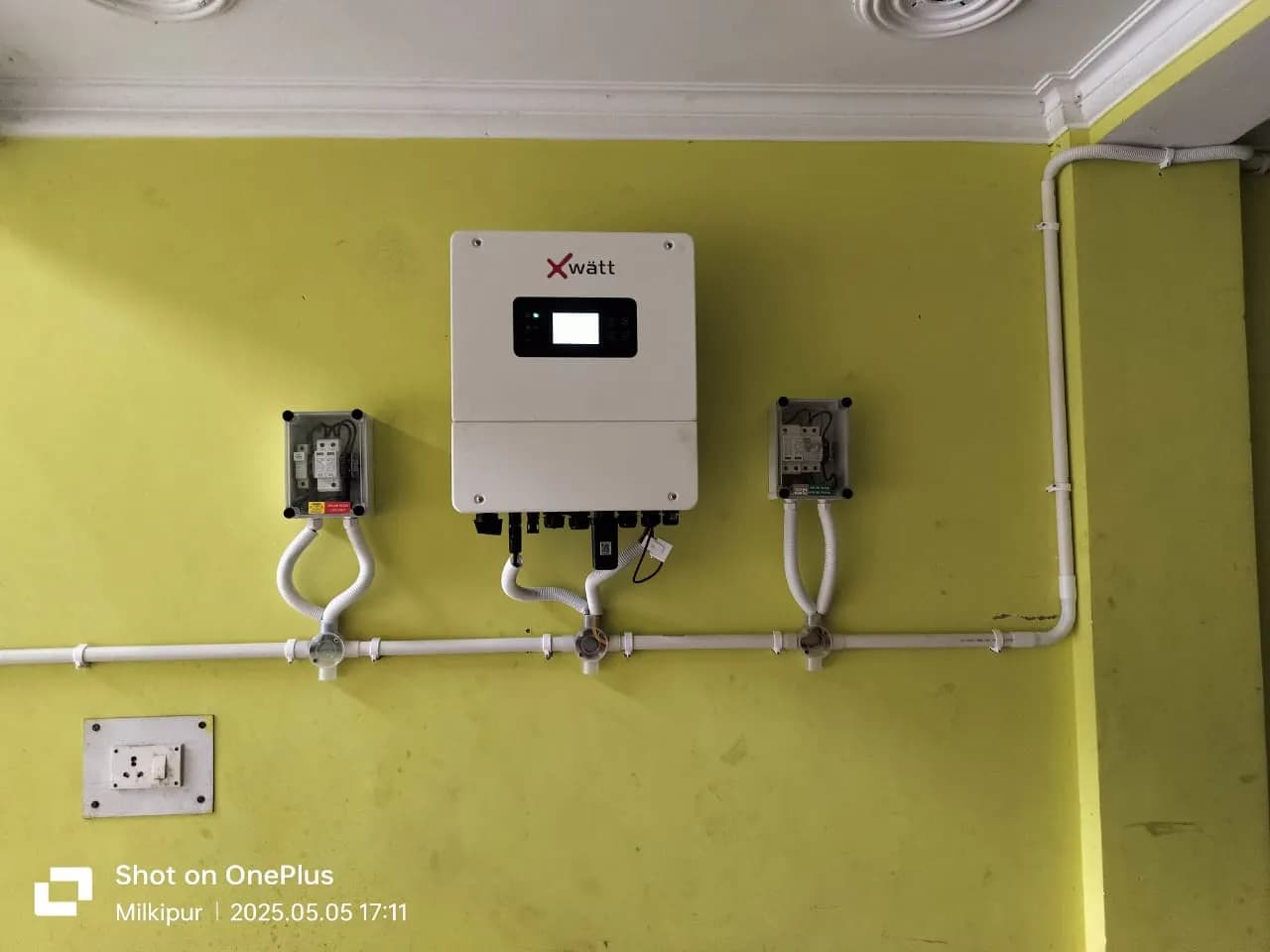

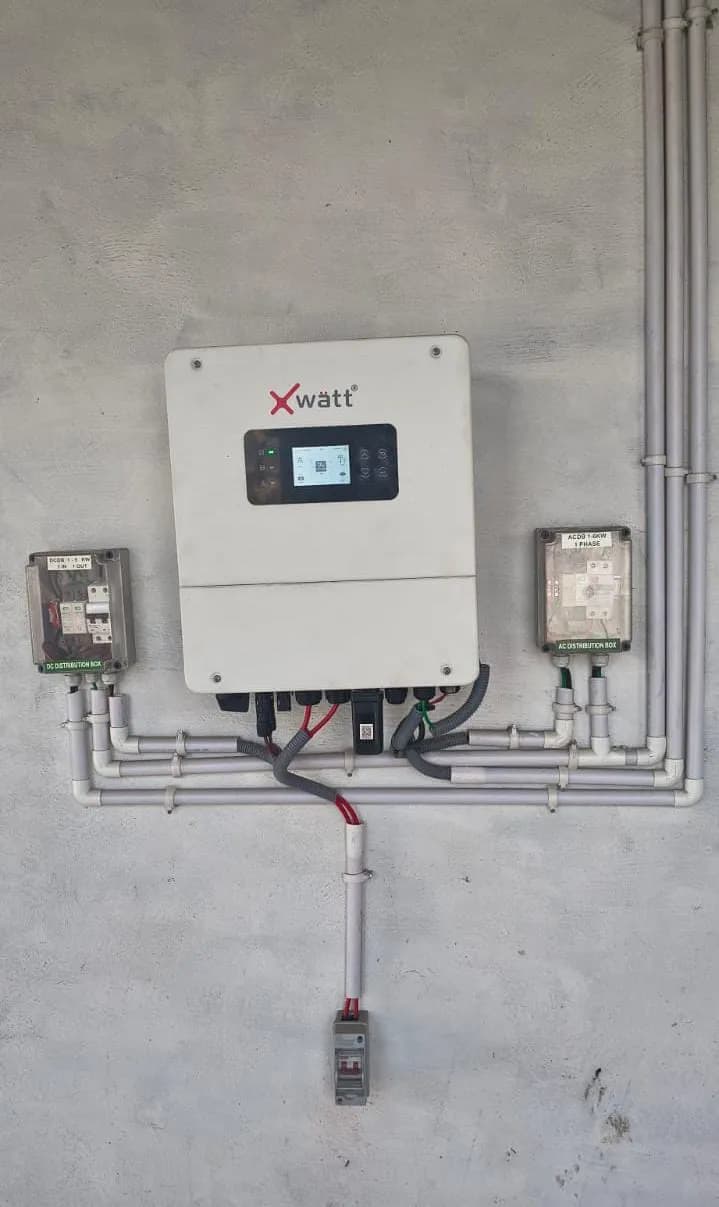

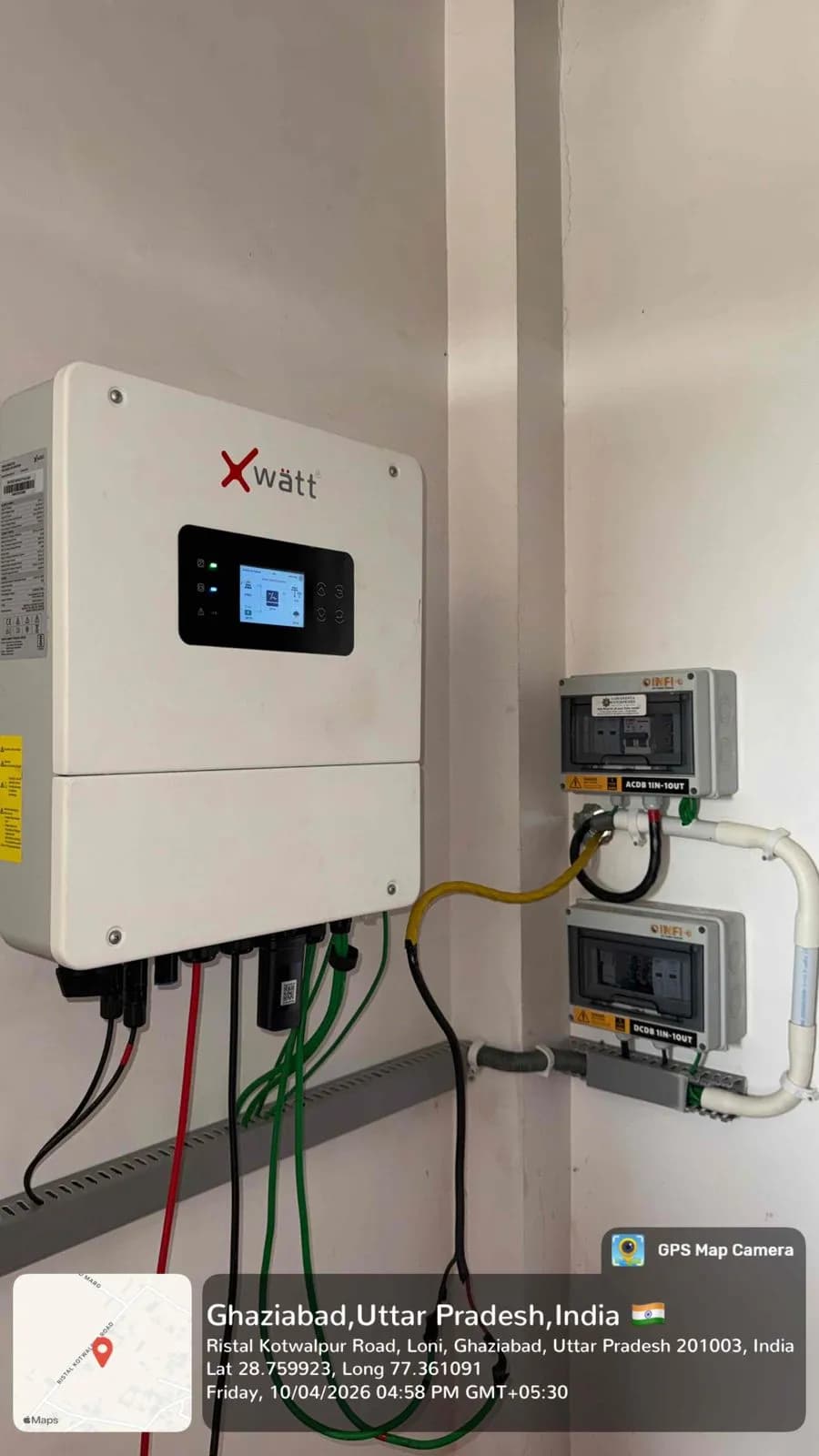

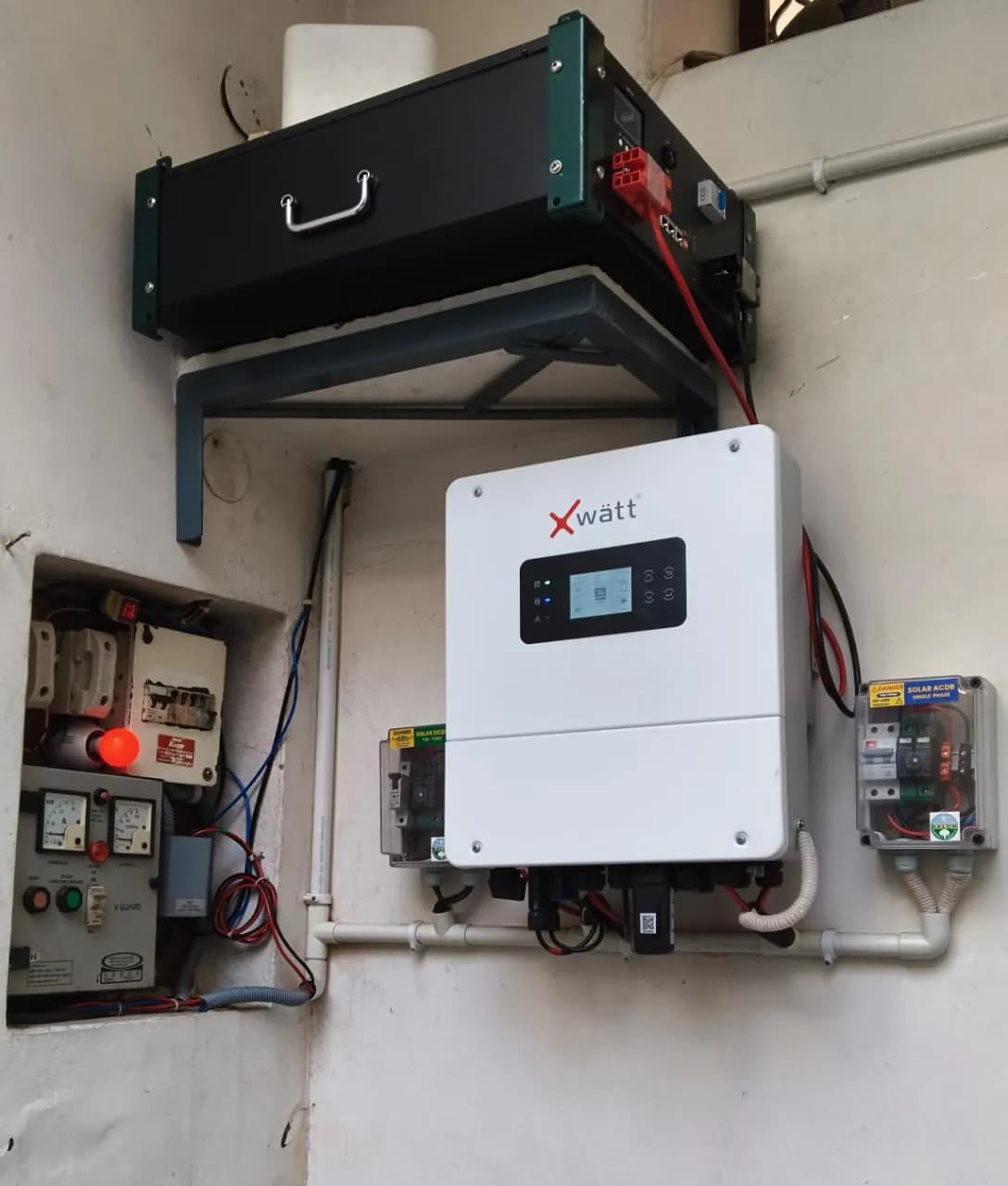

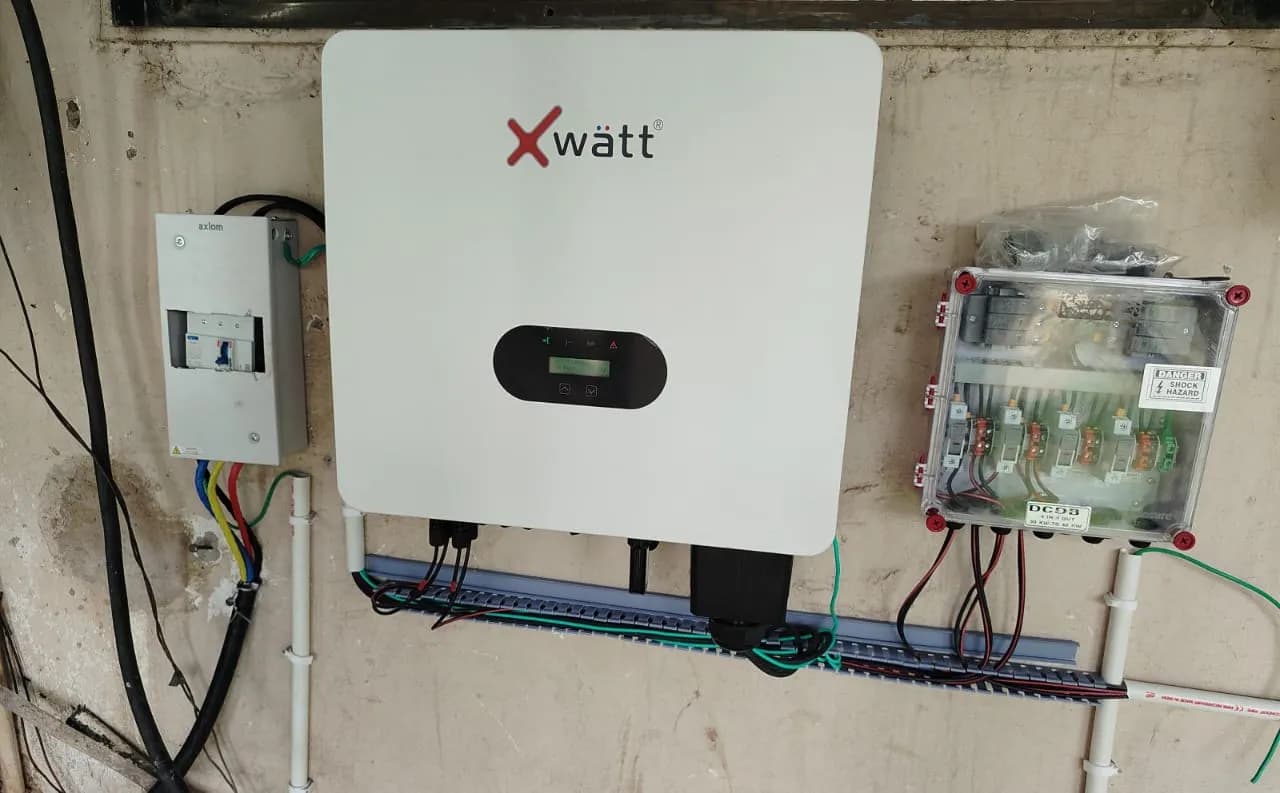

Installation gallery
Hybrid installations across India
After-sales service
4 Level ServiceSupport
From the first call to a replacement unit, every service request moves through four clear levels.
To Register A Complaint :
- Wifi/4G Configuration
- +91 90816 55586+91 90816 55587
- Raise Ticket
- www.xwatt.in/service-request
- Email ID
- service@xwatt.in
For issues that can be fixed remotely, we offer support via online monitoring, provided each inverter has internet access through the RMS Dongle.
If the problem is hardware-related or cannot be solved remotely, our team will visit the site for assistance.
For faulty inverters, replacements will be arranged within 48 business hours from the time the complaint is logged.
Register a complaint
To Register A Complaint :
- Wifi/4G Configuration
- +91 90816 55586+91 90816 55587
- Raise Ticket
- www.xwatt.in/service-request
- Email ID
- service@xwatt.in
XMonitor app
Your solar plant, live on your phone
Track daily generation, get instant fault alerts and manage every Xwatt inverter remotely with the free XMonitor app.
XMONITOR
Login
Hello Welcome Back
- Daily Unit GenerationToday's, monthly and lifetime kWh at a glance
- Automatic Fault DetectionInstant alerts the moment an inverter reports a fault
- Panel Efficiency MonitoringSpot underperforming panels before output drops
- Remote Inverter ManagementCheck status and adjust settings from anywhere
FAQ
Questions, answered
Can’t find what you need? Call our toll-free line 1800 120 1278.
What does a hybrid inverter do?
It manages solar, battery and grid together: powering your home from solar, storing surplus in a battery and switching to backup when the grid fails.
How fast does backup switch on?
The EPS output takes over in under 4 ms, so most appliances keep running without interruption.
Which batteries can I use?
Lithium and lead-acid batteries in the 40–60 V range. The Xwatt XWB-5.12KWH low-voltage battery is a direct match.
Which model sizes are available?
Five models from 3.0 kW to 6.0 kW (XWH-3.0K-LV to XWH-6.0K-LV), with PV arrays up to 9000 Wp.
Can I monitor it remotely?
Yes, through the XMonitor app over Wi-Fi, GPRS or local mode, with USB / RS485 interfaces.
What warranty is included?
Every hybrid inverter carries a 5-year warranty.
