Lithium Battery
A 51.2 V LFP battery for hybrid inverters. Stack up to 16 units in parallel and scale from 5.1 kWh to 81.9 kWh as your needs grow.
- Rated energy
- 5.1kWh
- Depth of discharge
- 95%
- Cycle life
- 6000+
- Units in parallel
- 16×
- Battery chemistry
- LFP
Key features
Storage that grows with your home
Safe LFP cells, long cycle life and smart management, in a compact pack you can expand to 16 units.
81.9kWh
High performance
5.1 to 81.9 kWh range with up to 100 A / 135 A charge and discharge.
IP40
Assured reliability
LFP cells with high-performance processors.
LCD
Smart management
Remote fault diagnosis, upgrades and a touchscreen display.
16×
Flexible adaptability
Cell-to-pack design, expandable to 16 units in parallel.
5.1~81.9 kWh wide capacity range
Max.100A/135 A charge /discharge current
Cycle life> 6000 cycles
IP40 ingress protection
LFP battery cell & high-performance processors
Remote fault diagnosis, upgrade and maintenance
Wide temperature tolerance
User-friendly LCD touchscreen for intuitive and easy interaction
Expandable to 16 units in parallel
CTP (Cell-to-Pack) design maximizes space and energy density for superior performance
Technical specifications
Full datasheet
| Description | XWB-5.12KWH |
|---|---|
| Battery model | XWB-5.12KWH |
| Battery type | LFP |
| Scalability | Max. 16 pcs in parallel |
| Rated voltage | 51.2 Vdc |
| Operating voltage range | 42.4 ~ 57.6 Vdc |
| Rated energy | 5.1 kWh |
| Usable energy (95% DOD)① | 4.8 kWh |
| Rated power | 2.5 kW |
| Max. power | 6.9 kW |
| Peak output power | 10.2 kW, 10s |
| Recommend charge / Discharge current | 50 A |
| Max. charge / Discharge current② | 100 A / 135 A |
| Depth of discharge | 95% |
| Cycle life (95% DOD)③ | > 6000 cycles |
| Dimensions (W x H x D) | 370mm x 635mm x 183mm |
| Net weight | 42.8 ± 1 kg |
| Warranty | 10 Years |
| Description | XWB-5.12KWH |
|---|---|
| Charge temperature | 0 ~ +55ºC |
| Discharge temperature | -20~ +55ºC |
| Cooling concept | Natural cooling |
| Storage temperature | -20 ~ +30ºC (12 months) · +30 ~ +60ºC (6 months) |
| Relative humidity | 5 ~ 95% RH (non-condensing) |
| Max. operating altitude | 3000m |
| Installation type | Wall mounting / Floor mounting |
| Ingress protection | IP40 |
| Environment | Indoor |
| Description | XWB-5.12KWH |
|---|---|
| Display | Indicators / LCD |
| Communication interfaces | CAN2.0 / RS485 |
| Description | XWB-5.12KWH |
|---|---|
| Hazardous materials classification | Class 9 |
| Protection class | Class I |
| Certifications | IEC 62477, IEC 62619, IEC 60730, IEC 63056, IEC 61000 |
① Test conditions : 95% DOD, 0.5C charge & discharge @+25ºC · ② Current is affected by the number of batteries connected in parallel as well as temperature and SOC · ③ Test conditions : 25 ± 2ºC, 0.5C charge & discharge, 70%EOL
Downloads
Product documents
Datasheet
Full technical specifications for XWB-5.12KWH.
Warranty
10 years
Product warranty
The Xwatt low-voltage battery is covered by a 10-year warranty, backed by 30+ service centres across India.
Check your warranty online anytime with your serial number.
Certifications
Tested to Indian and international standards
IEC 62619
Safety of secondary lithium cells for industrial use
IEC 63056
Safety of lithium batteries in energy storage systems
IEC 62477 · IEC 60730 · IEC 61000
Power converter safety, controls and EMC

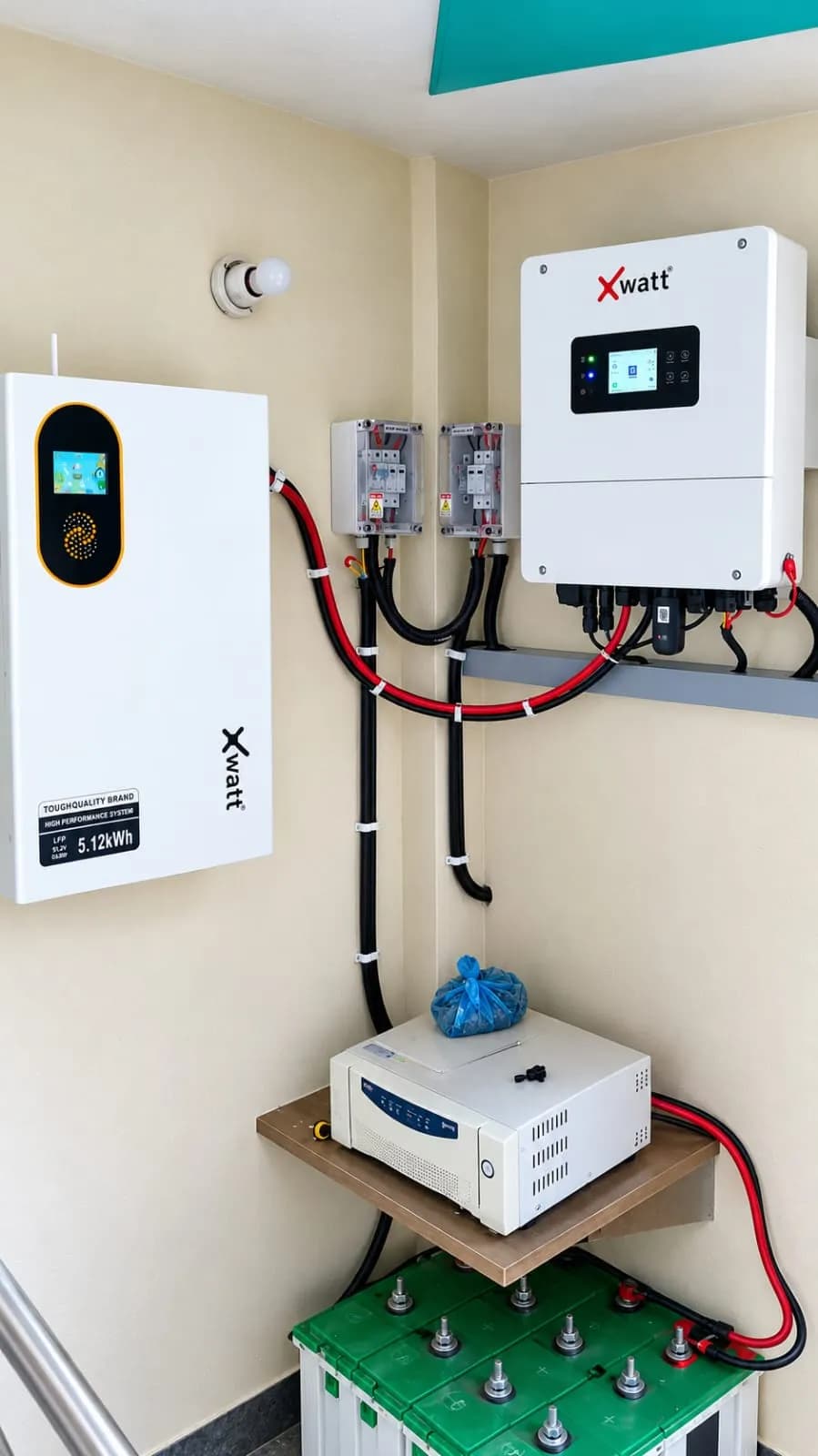

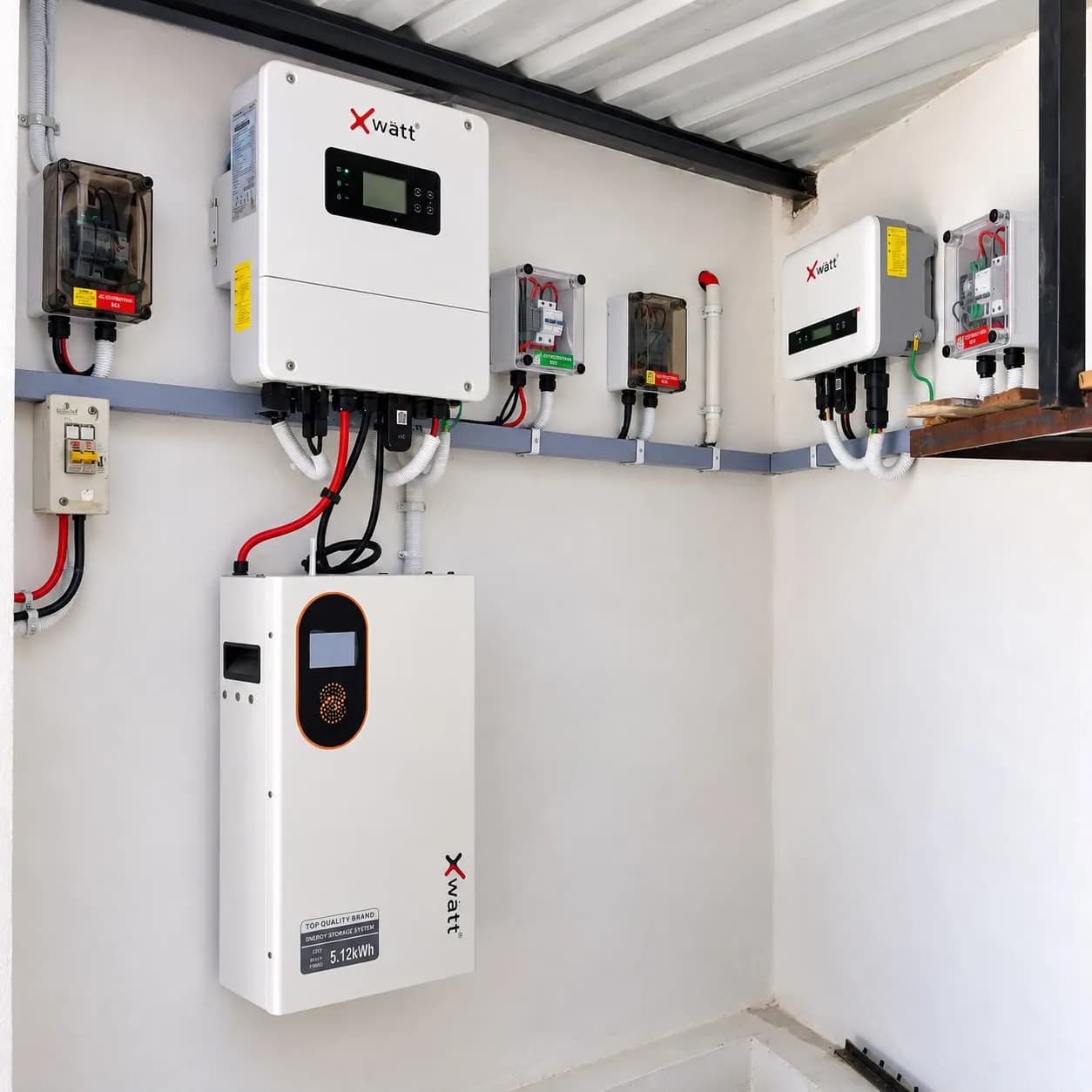

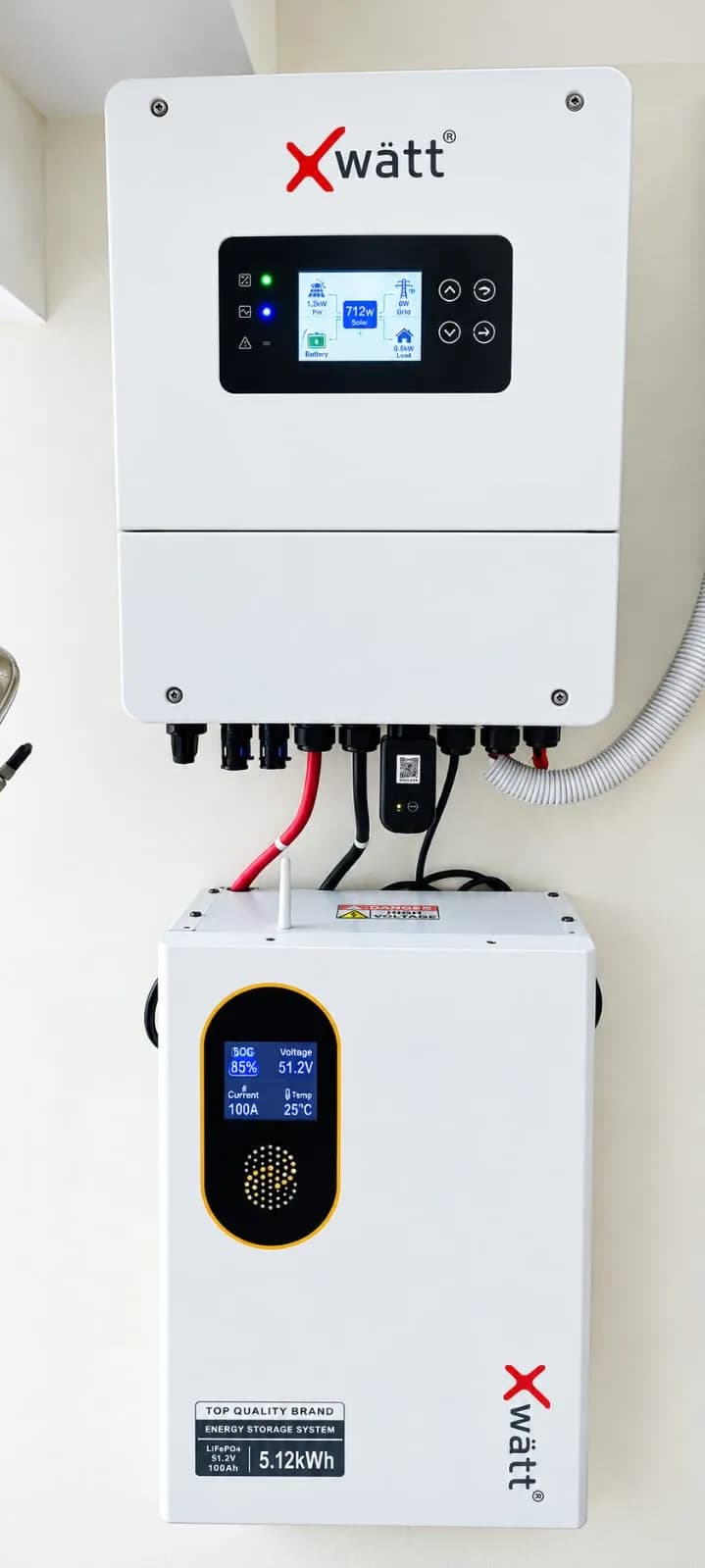

Installation gallery
Lithium battery installations across India
After-sales service
4 Level ServiceSupport
From the first call to a replacement unit, every service request moves through four clear levels.
To Register A Complaint :
- Wifi/4G Configuration
- +91 90816 55586+91 90816 55587
- Raise Ticket
- www.xwatt.in/service-request
- Email ID
- service@xwatt.in
For issues that can be fixed remotely, we offer support via online monitoring, provided each inverter has internet access through the RMS Dongle.
If the problem is hardware-related or cannot be solved remotely, our team will visit the site for assistance.
For faulty inverters, replacements will be arranged within 48 business hours from the time the complaint is logged.
Register a complaint
To Register A Complaint :
- Wifi/4G Configuration
- +91 90816 55586+91 90816 55587
- Raise Ticket
- www.xwatt.in/service-request
- Email ID
- service@xwatt.in
XMonitor app
Your solar plant, live on your phone
Track daily generation, get instant fault alerts and manage every Xwatt inverter remotely with the free XMonitor app.
XMONITOR
Login
Hello Welcome Back
- Daily Unit GenerationToday's, monthly and lifetime kWh at a glance
- Automatic Fault DetectionInstant alerts the moment an inverter reports a fault
- Panel Efficiency MonitoringSpot underperforming panels before output drops
- Remote Inverter ManagementCheck status and adjust settings from anywhere
FAQ
Questions, answered
Can’t find what you need? Call our toll-free line 1800 120 1278.
How much energy does one battery store?
Each XWB-5.12KWH stores 5.1 kWh, with 4.8 kWh usable at 95% depth of discharge.
Can I add more batteries later?
Yes. Up to 16 units can be connected in parallel, scaling the system from 5.1 kWh to 81.9 kWh.
How long will it last?
The LFP cells are rated for 6000 cycles at 95% depth of discharge, and the battery carries a 10-year warranty.
Where can it be installed?
Indoors, wall-mounted or floor-mounted. It is IP40 rated and charges between 0 and 55 °C.
Which inverters is it compatible with?
It is designed for Xwatt low-voltage hybrid inverters and communicates over CAN2.0 / RS485.
Is it safe?
It uses LFP chemistry and is certified to IEC 62619, IEC 63056, IEC 62477, IEC 60730 and IEC 61000.
