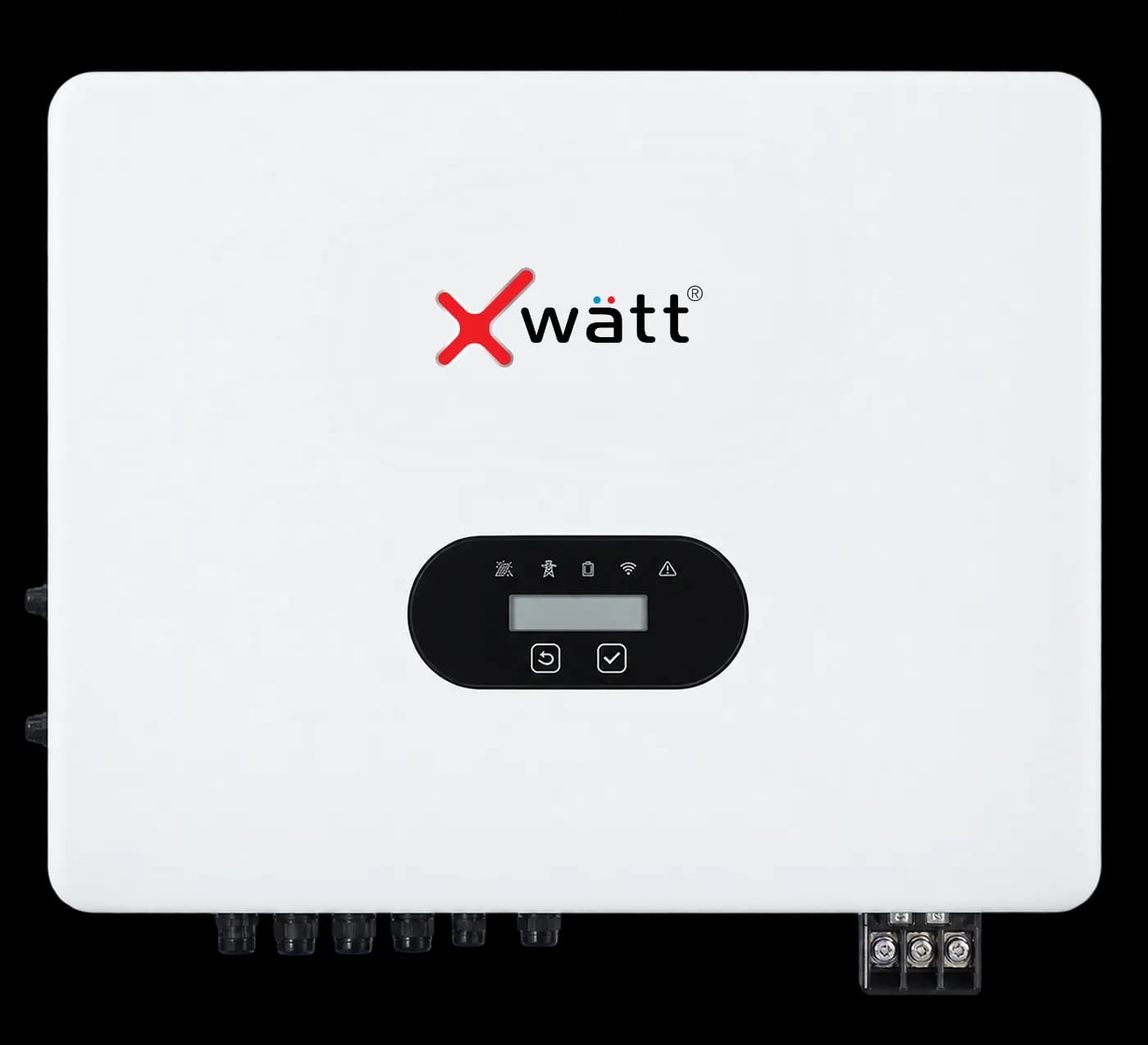

Three Phase Inverter
5 kW – 125 kW
On-grid three phase inverters for commercial and industrial rooftops. Up to eight MPP trackers, 98.7% efficiency and IP66 protection, from 5 kW to 125 kW.
- Max. efficiency
- 98.7%
- MPP trackers (80–125 kW)
- Up to 8
- Max. PV input voltage
- 1100V
- AC voltage range
- 310–480V
- Ingress protection
- IP66
Key features
Built for commercial and industrial loads
Multiple MPP trackers, high DC voltage and smart fan cooling keep large rooftops producing at full output.
125kW
Wide power range
20 models from 5 kW to 125 kW across three ranges.
8MPPT
Flexible string design
Up to eight trackers for complex roof layouts.
98.7%
High efficiency
Euro efficiency up to 98.2%.
<1W
Low night standby
Smart fan cooling and under 1 W standby at night.
In built SPD on both side
Lower Start-up Voltage 180V
Smart Fan Cooling System
Ingress Protection IP66
Remote Upgrade and Maintenance
Anti Islanding Protection
Higher AC Range 310V - 480V
Easier Communication with WIFI / 4G / Local Mode
MPPT Efficiency Up To 99%
Supported upto 800Wp Panel
High Performance

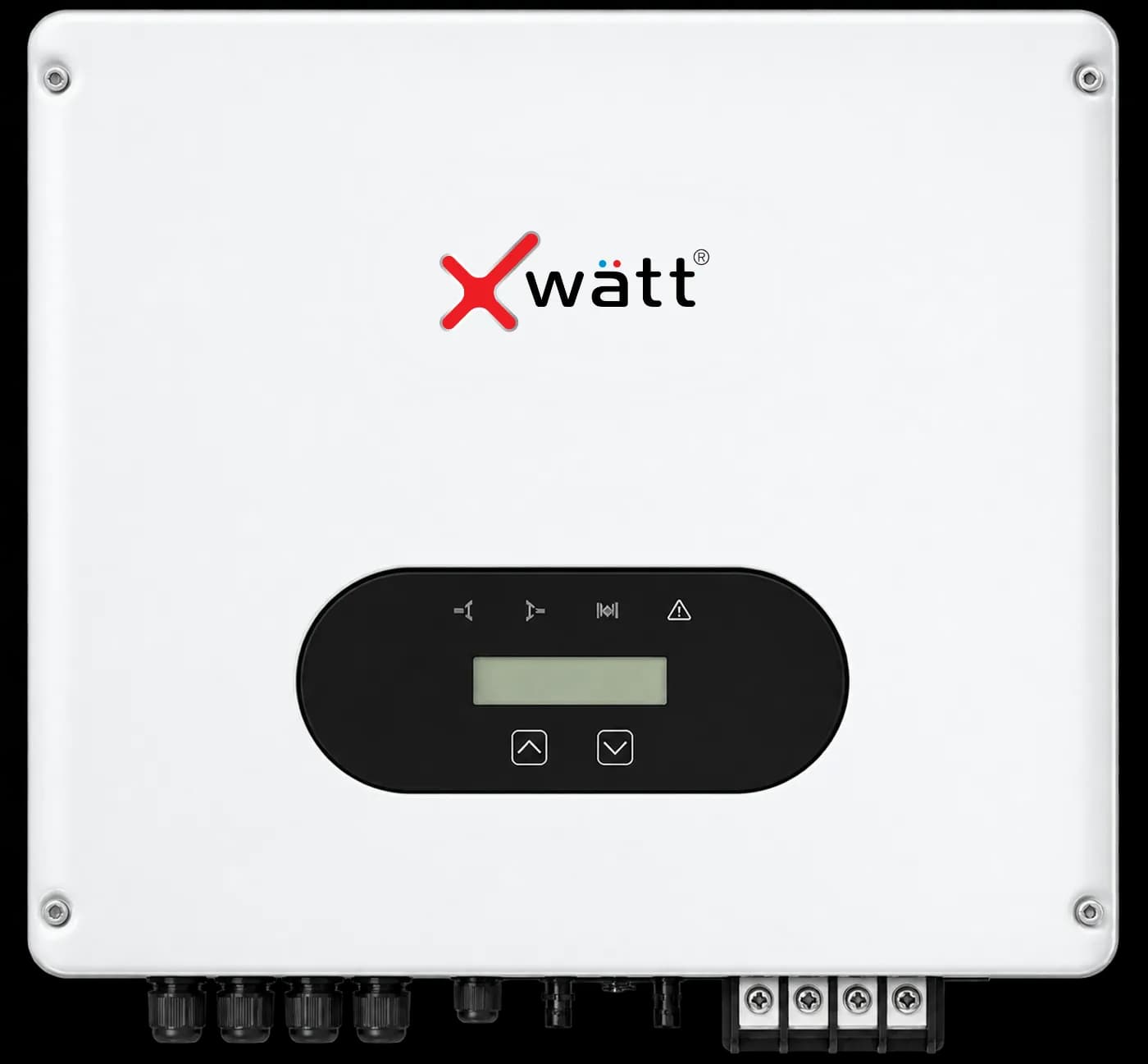

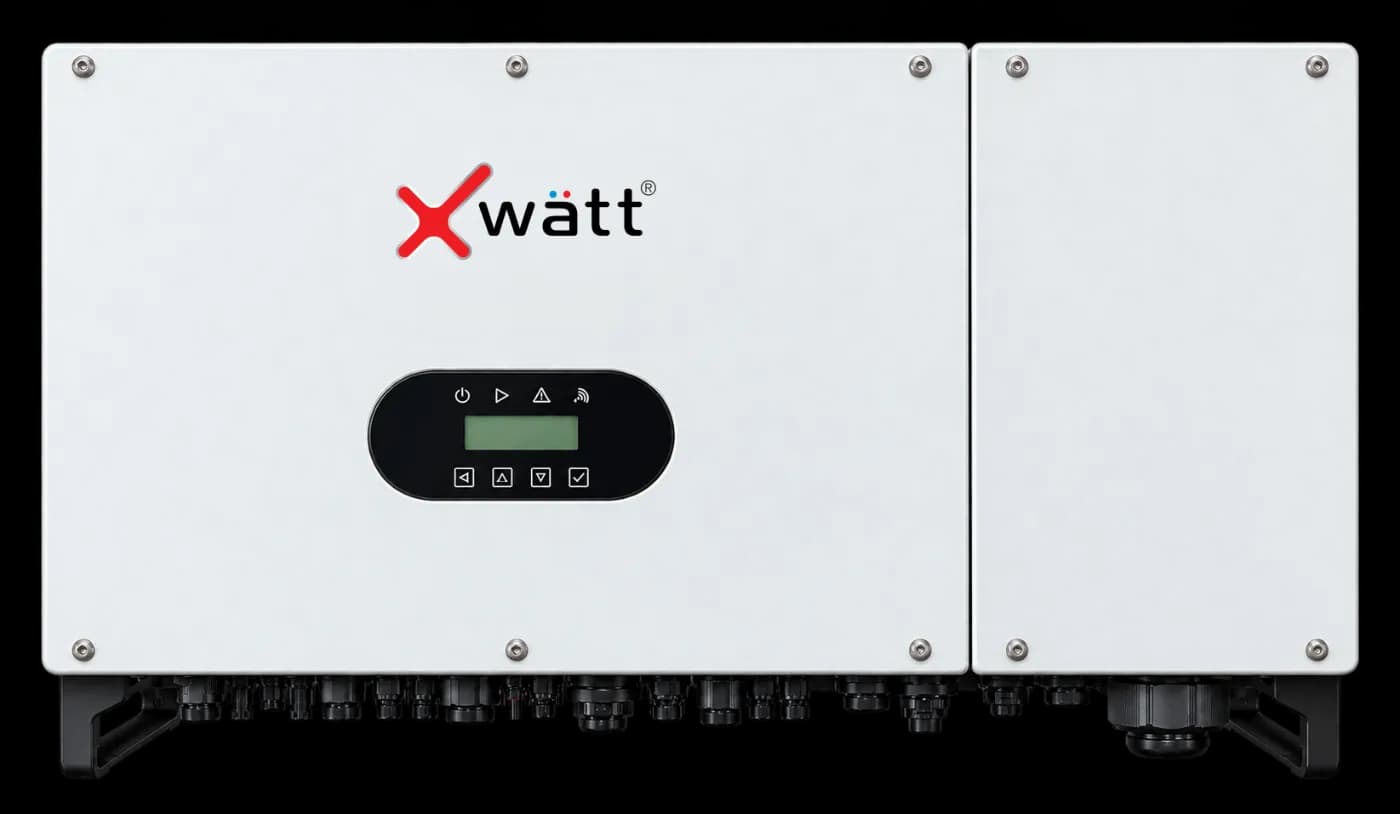

Product variants
Three compact designs
Technical specifications
Full datasheet
| Description | XW-5K | XW-6K | XW-8K | XW-10K | XW-12K | XW-15K | XW-20K | XW-25K | XW-30K | XW-33K |
|---|---|---|---|---|---|---|---|---|---|---|
| Max. PV array input power [Wp] | 7500 | 9000 | 12000 | 15000 | 18000 | 22500 | 30000 | 37500 | 45000 | 49000 |
| Max. PV input voltage [V] | 1100 | 1100 | 1100 | 1100 | 1100 | 1100 | 1100 | 1100 | 1100 | 1100 |
| Startup voltage [V] | 180 | 180 | 180 | 180 | 180 | 180 | 180 | 180 | 180 | 180 |
| Nominal input voltage [V] | 650 | 650 | 650 | 650 | 650 | 650 | 650 | 650 | 650 | 650 |
| MPP tracker voltage range [V] | 180–1000 | 180–1000 | 180–1000 | 180–1000 | 180–1000 | 180–1000 | 180–1000 | 180–1000 | 180–1000 | 180–1000 |
| No. of MPP trackers | 2 | |||||||||
| String per MPP tracker | 1/1 | 1/2 | 2/2 | |||||||
| Max. PV input current [A] | 20/20 | 20/30 | 30/30 | 40/40 | ||||||
| PV array short circuit current [A] | 25/25 | 25/37.5 | 37.5/37.5 | 50/50 | ||||||
| Description | XW-5K | XW-6K | XW-8K | XW-10K | XW-12K | XW-15K | XW-20K | XW-25K | XW-30K | XW-33K |
|---|---|---|---|---|---|---|---|---|---|---|
| Rated AC output power [W] | 5000 | 6000 | 8000 | 10000 | 12000 | 15000 | 20000 | 25000 | 30000 | 33000 |
| Max. AC output power [kVA] | 5.5 | 6.6 | 8.8 | 11 | 13.2 | 16.5 | 22 | 27.5 | 33 | 36.3 |
| Max. AC output current [A] | 8.3 | 10 | 13.3 | 16.7 | 20 | 24 | 32 | 41 | 48 | 53 |
| Nominal AC voltage / AC voltage range [Vac] | 400 ; 310–480 | |||||||||
| Nominal AC frequency / AC frequency range [Hz] | 50 ; 45–55 | |||||||||
| Power Factor | ~ 0.99 | |||||||||
| THDi (rated power) [%] | < 2 (Under Rated Power) | |||||||||
| Description | XW-5K | XW-6K | XW-8K | XW-10K | XW-12K | XW-15K | XW-20K | XW-25K | XW-30K | XW-33K |
|---|---|---|---|---|---|---|---|---|---|---|
| Max. efficiency [%] | 98.5 | |||||||||
| Euro efficiency [%] | 98 | |||||||||
| Standby consumption [W] @Night | < 1 | |||||||||
| Ingress protection | IP66 | |||||||||
| Operating ambient temperature range [°C] | −30 to 60 | |||||||||
| Max. operation altitude [m] | 4000 | |||||||||
| Relative humidity [%] | 0 – 100 | |||||||||
| Dimensions (W × H × D) [mm] | 427 × 450 × 204 | |||||||||
| Weight [kg] | 15 | 18 | ||||||||
| Cooling concept | Smart Fan Cooling | |||||||||
| Communication interfaces | RS 485 | |||||||||
| Monitoring | WiFi / 4G / Local Mode | |||||||||
| Description | XW-5K | XW-6K | XW-8K | XW-10K | XW-12K | XW-15K | XW-20K | XW-25K | XW-30K | XW-33K |
|---|---|---|---|---|---|---|---|---|---|---|
| Over / under voltage protection | Yes | |||||||||
| DC reverse polarity protection | Yes | |||||||||
| Short circuit protection | Yes | |||||||||
| Output over current protection | Yes | |||||||||
| Output over voltage protection | Yes | |||||||||
| Insulation resistance monitoring | Yes | |||||||||
| Grid monitoring | Yes | |||||||||
| DC injection monitoring | Yes | |||||||||
| Back feed current monitoring | Yes | |||||||||
| Residual current detection | Yes | |||||||||
| Anti-islanding protection | Yes | |||||||||
| Over temperature protection | Yes | |||||||||
| Integrated DC Switch | Yes | |||||||||
| SPD (DC / AC) | DC Side Type II SPD / AC Side Type III SPD | |||||||||
| Description | XW-5K | XW-6K | XW-8K | XW-10K | XW-12K | XW-15K | XW-20K | XW-25K | XW-30K | XW-33K |
|---|---|---|---|---|---|---|---|---|---|---|
| Certifications | BIS: IS 16221 (Part-2):2015 (IEC 62109 Part-2:2011) · IS 16169:2019 (IEC 62116:2014) · IS 17980:2022 (IEC 62891:2020) | |||||||||
| Warranty | 8 Years* | |||||||||
Downloads
Product documents
Datasheets
Specifications for the 5–33 kW, 36–60 kW and 80–125 kW ranges.
User Manual
Operation, monitoring setup, safety and troubleshooting.
BIS Certificate
Bureau of Indian Standards certification for this product range.
Warranty
8 years
Product warranty
Every Xwatt three phase inverter is covered by an 8-year warranty, backed by 30+ service centres across India.
Check your warranty online anytime with your serial number.
Certifications
Tested to Indian and international standards
IS 16221 (Part-2) : 2015
BIS safety of power converters · IEC 62109 Part-2 : 2011
IS 16169 : 2019
Anti-islanding test procedure · IEC 62116 : 2014
IS 17980 : 2022
Overall efficiency of grid-connected inverters · IEC 62891 : 2020

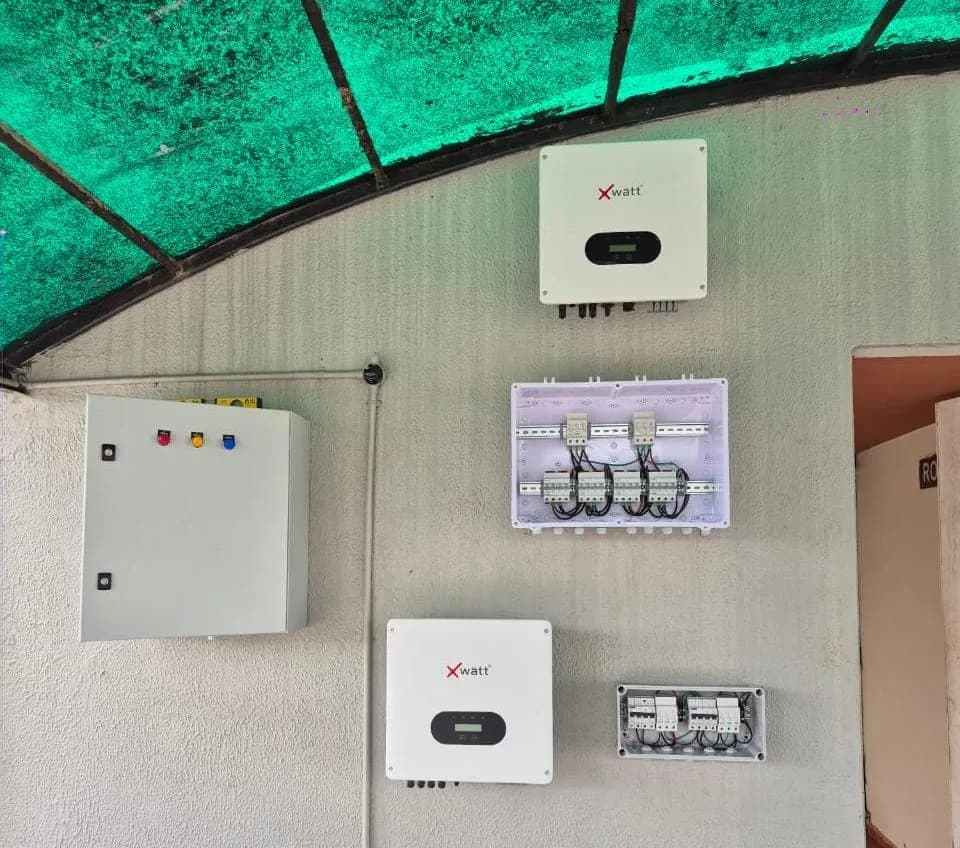

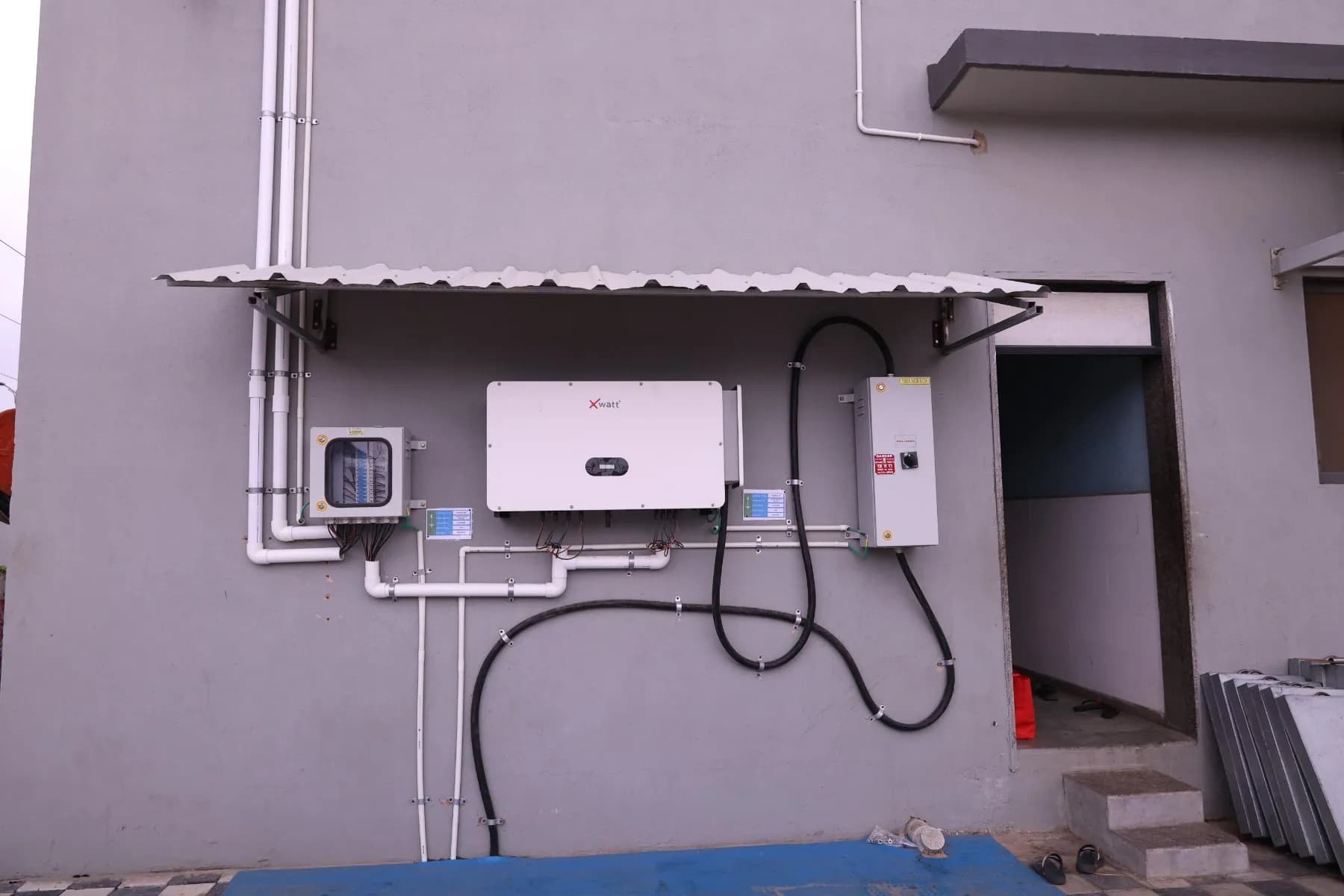

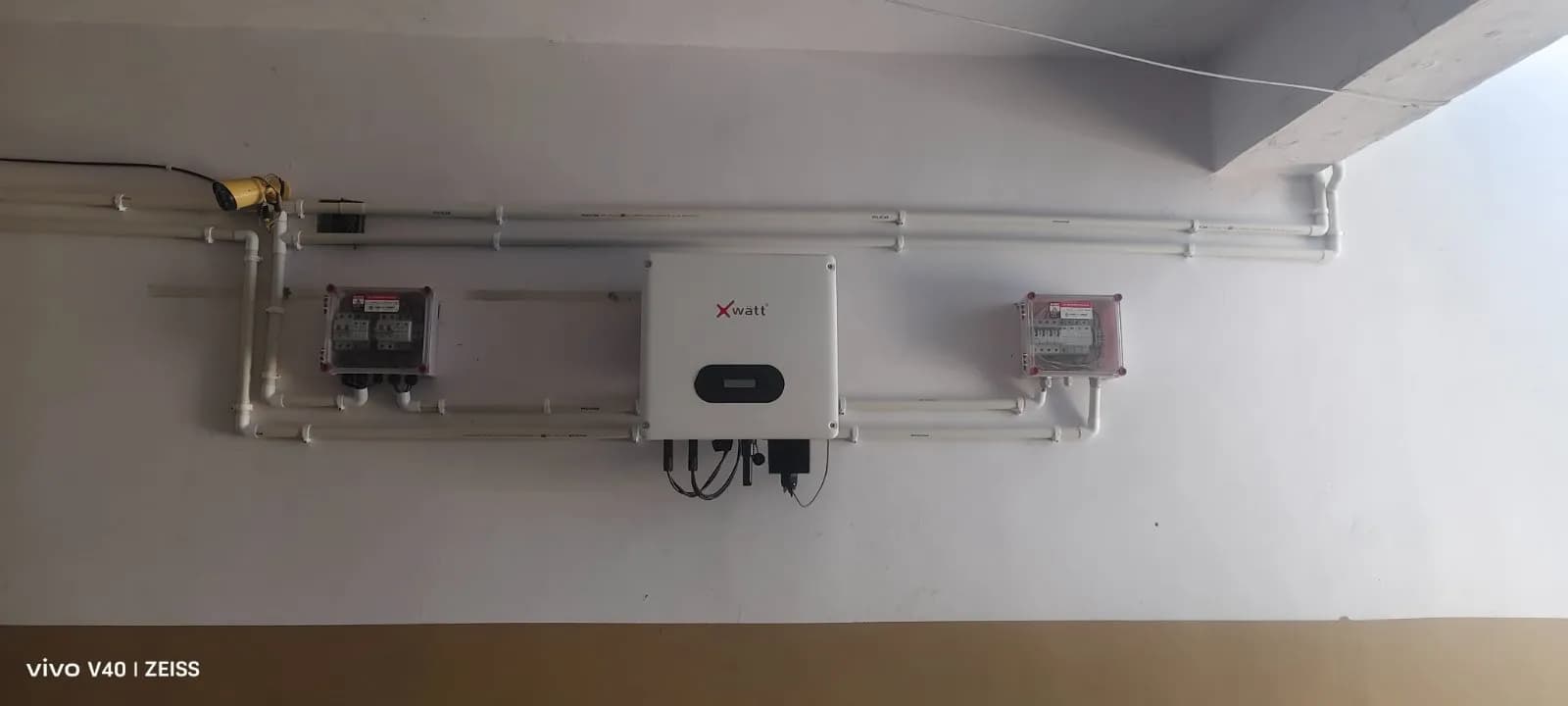

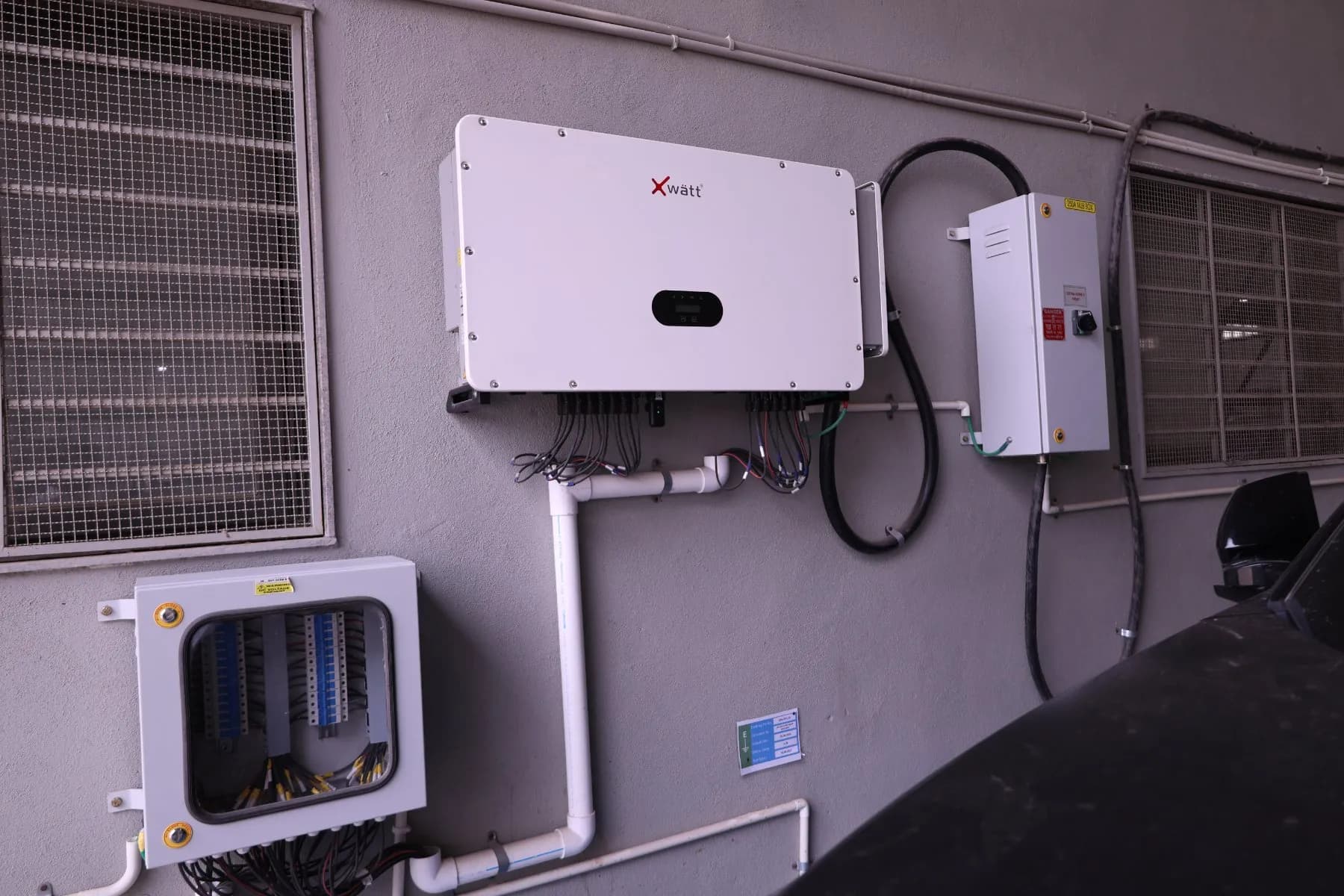

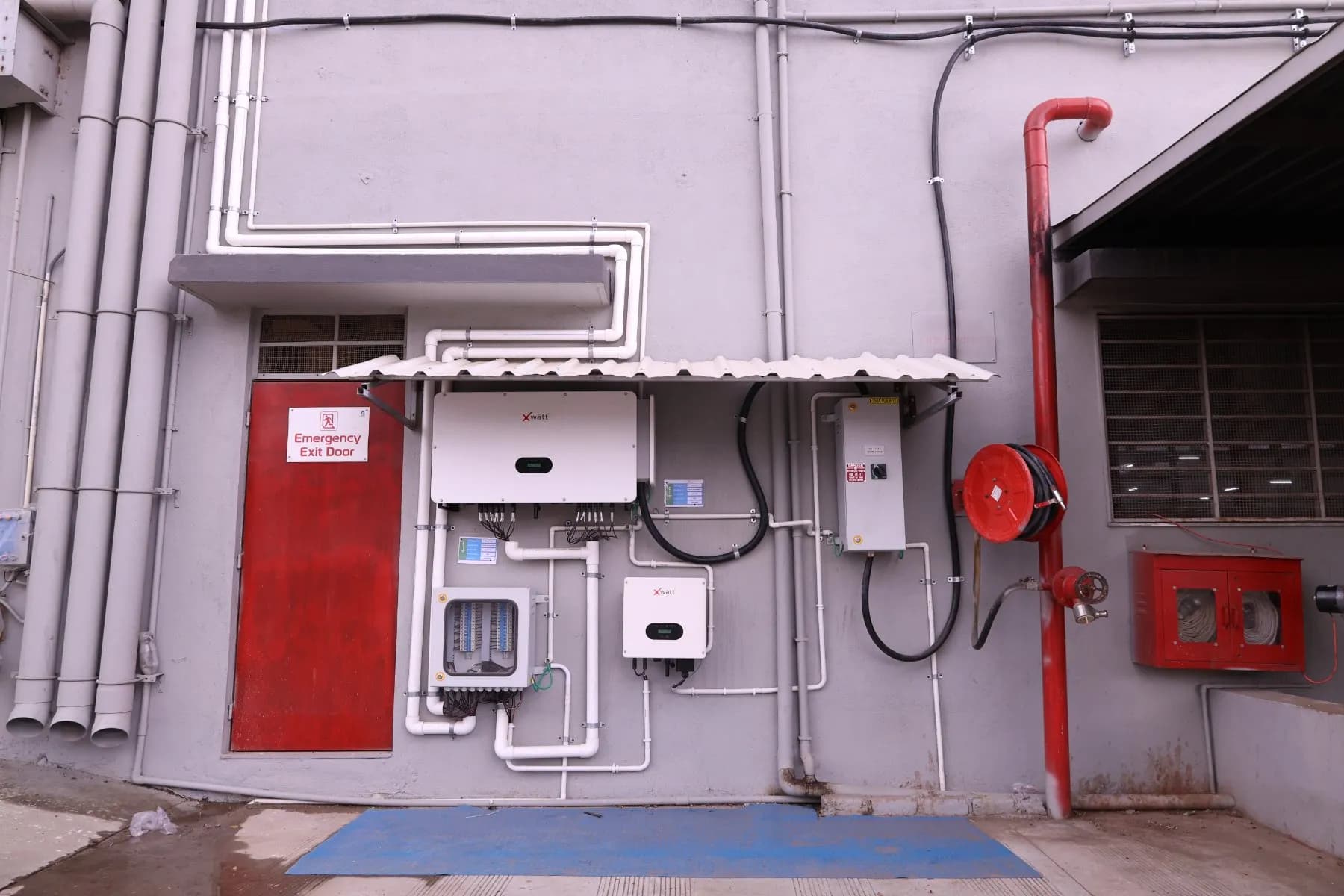

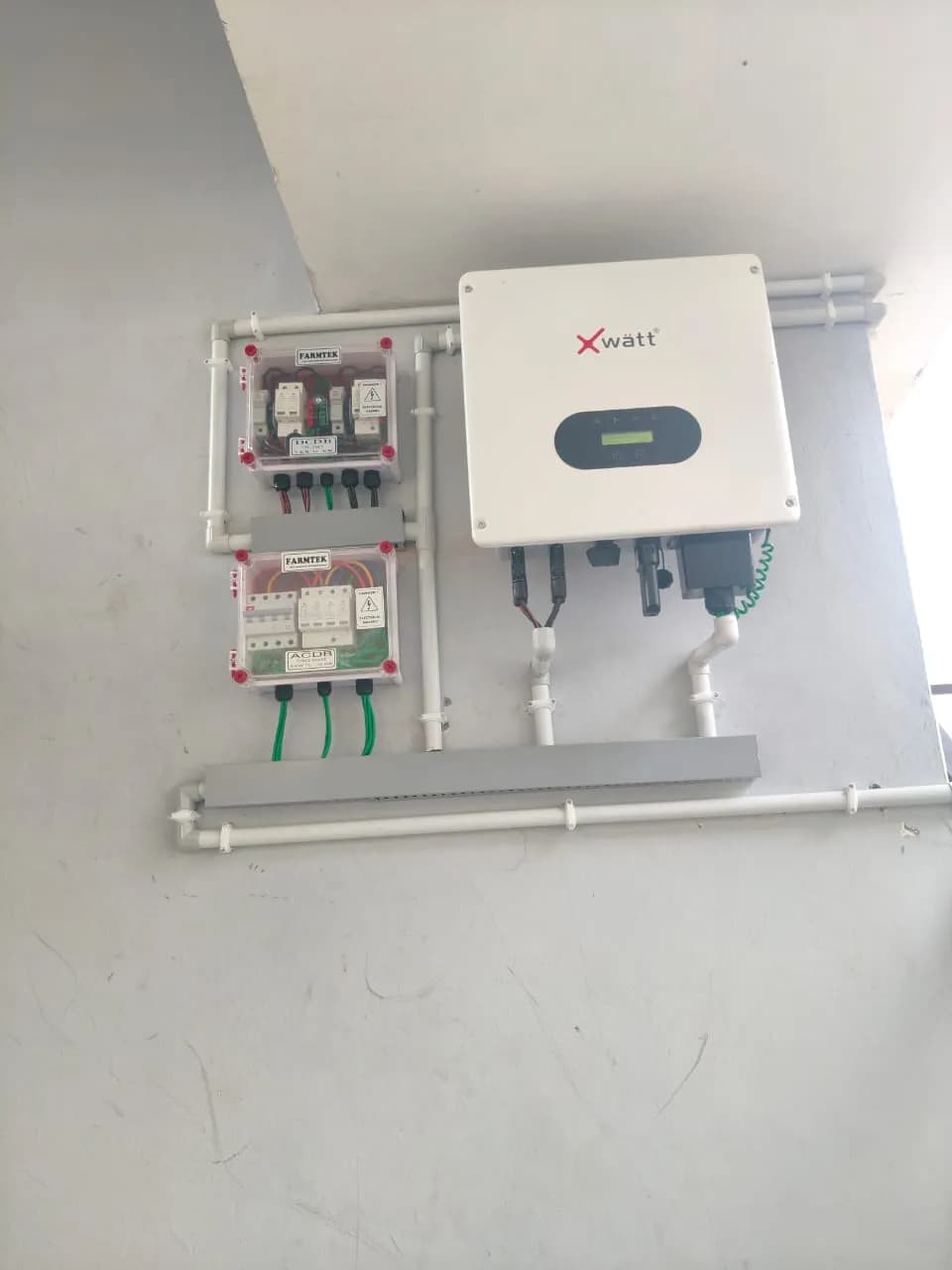

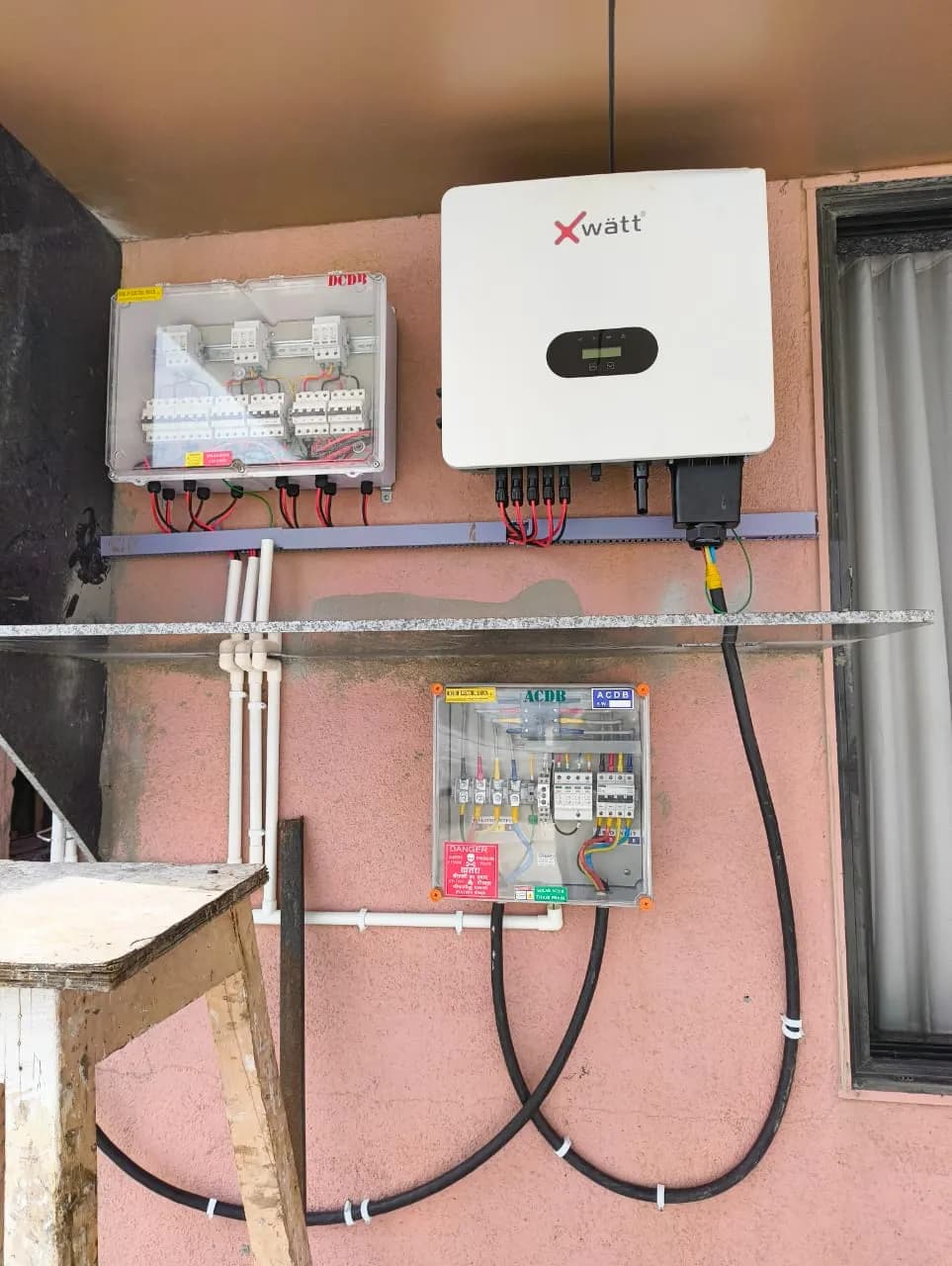

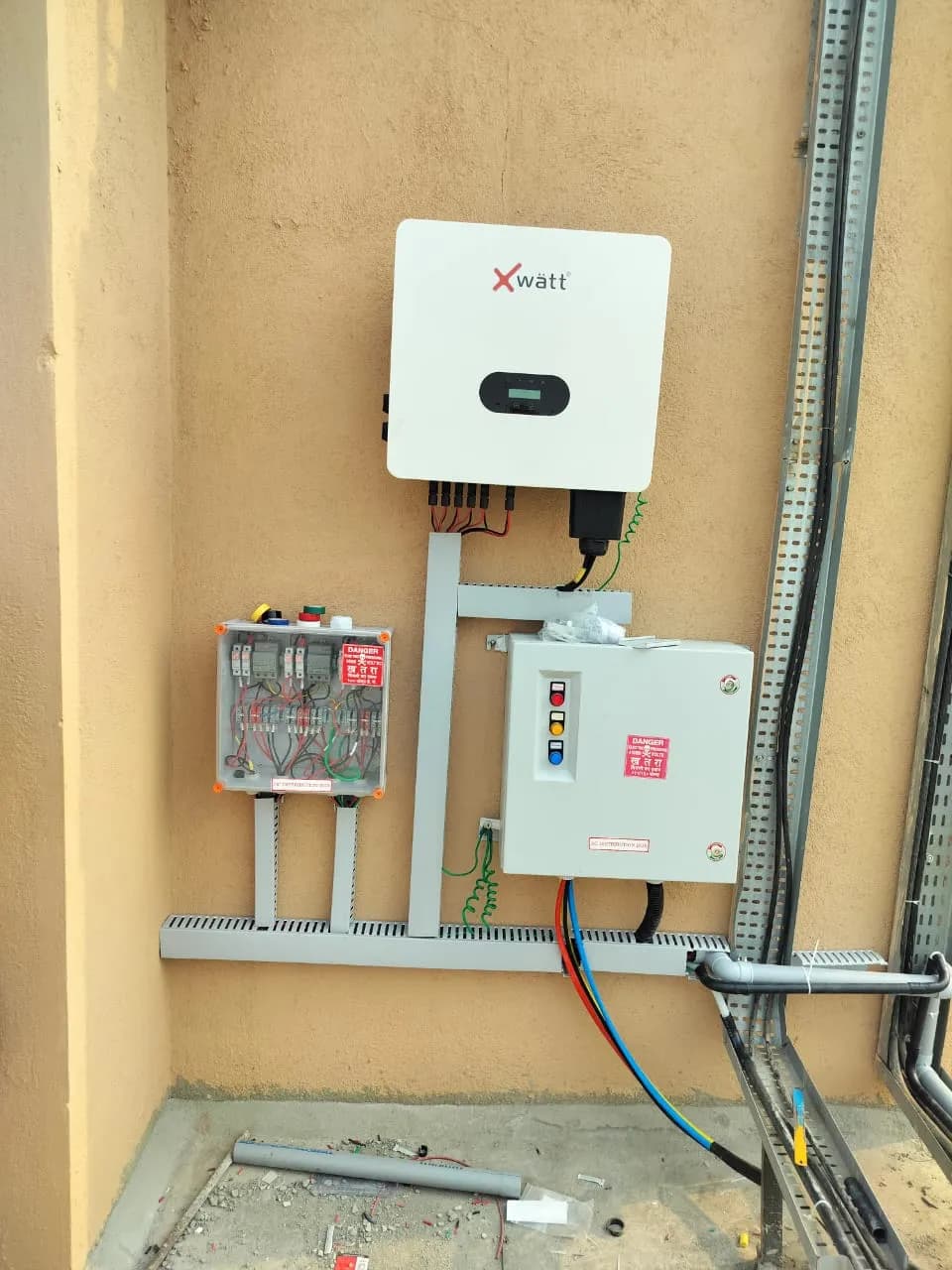

Installation gallery
Three phase installations across India
After-sales service
4 Level ServiceSupport
From the first call to a replacement unit, every service request moves through four clear levels.
To Register A Complaint :
- Wifi/4G Configuration
- +91 90816 55586+91 90816 55587
- Raise Ticket
- www.xwatt.in/service-request
- Email ID
- service@xwatt.in
For issues that can be fixed remotely, we offer support via online monitoring, provided each inverter has internet access through the RMS Dongle.
If the problem is hardware-related or cannot be solved remotely, our team will visit the site for assistance.
For faulty inverters, replacements will be arranged within 48 business hours from the time the complaint is logged.
Register a complaint
To Register A Complaint :
- Wifi/4G Configuration
- +91 90816 55586+91 90816 55587
- Raise Ticket
- www.xwatt.in/service-request
- Email ID
- service@xwatt.in

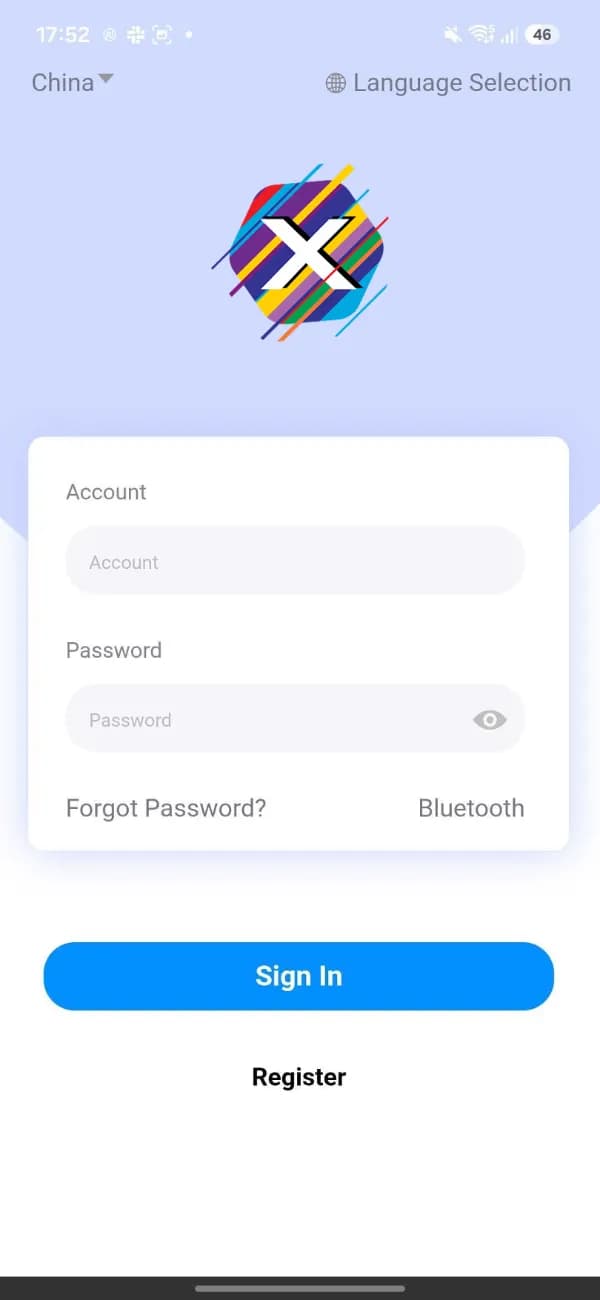

XMonitor app
Your solar plant, live on your phone
Track daily generation, get instant fault alerts and manage every Xwatt inverter remotely with the free XMonitor app.
XMONITOR
Login
Hello Welcome Back
- Daily Unit GenerationToday's, monthly and lifetime kWh at a glance
- Automatic Fault DetectionInstant alerts the moment an inverter reports a fault
- Panel Efficiency MonitoringSpot underperforming panels before output drops
- Remote Inverter ManagementCheck status and adjust settings from anywhere
FAQ
Questions, answered
Can’t find what you need? Call our toll-free line 1800 120 1278.
Which power ranges are available?
Three ranges: 5–33 kW (10 models), 36–60 kW (5 models) and 80–125 kW (5 models).
How many MPP trackers do I get?
Two on the 5–33 kW range, three or four on 36–60 kW, and eight on 80–125 kW.
What grid voltage does it support?
Nominal 400 V with an operating range of 310–480 V at 50 Hz (45–55 Hz).
Is it suitable for outdoor installation?
Yes. It is IP66 rated with smart fan cooling and operates from −30 °C to 60 °C (−25 °C to 60 °C on the 36–60 kW range).
How is it monitored?
Through the XMonitor app over Wi-Fi, 4G or local mode, with an RS485 interface.
What warranty is included?
Every three phase inverter carries an 8-year warranty.
